LTC1860LCMS8#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC1860LCMS8#PBF - Analogue to Digital Converter, 12 bit, 150 kSPS, Differential, Serial, Single, 4.75 V

Download LTC1860LCMS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

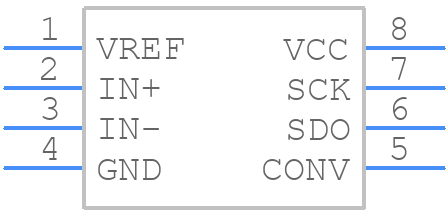

LTC1860LCMS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1860LCMS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1660)
click to zoom
3D Models
LTC1860LCMS8#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1660)
click to zoom

LTC1860LCMS8#PBF Details

  • Manufacturer Part Number:

    LTC1860LCMS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.5 V

  • Conversion Time-Max:

    4.66 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.15 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC1860LCMS8#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1860LCMS8 can be found in the application note AN115, which provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and minimize noise.
  • The selection of input and output capacitors depends on the specific application requirements. A good starting point is to use low-ESR capacitors with a minimum capacitance of 10uF for the input and 22uF for the output. The datasheet provides more information on capacitor selection and the application note AN115 provides additional guidance.
  • The maximum operating temperature range for the LTC1860LCMS8 is -40°C to 125°C. However, the device can be operated at a reduced temperature range depending on the specific application requirements and the thermal management of the system.
  • To ensure stability, follow the recommended layout and placement guidelines, use the correct input and output capacitors, and ensure that the device is properly decoupled. Additionally, the application note AN115 provides guidance on stability analysis and compensation techniques.
  • The typical startup time for the LTC1860LCMS8 is around 10ms, but this can vary depending on the specific application and the input voltage. The datasheet provides more information on startup time and the application note AN115 provides additional guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1860LCMS8#PBF Overview

Use the download button to access the LTC1860LCMS8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC18, or try a keyword search, such as Analog to Digital Converters
