LTC1861HMS#PBF - Analog Devices

Description: µPower, 12-Bit, 250ksps 1- and 2-Channel ADCs in MSOP

Download LTC1861HMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

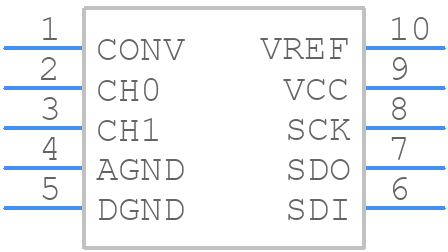

LTC1861HMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1861HMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS 10 MSOP-1
click to zoom
3D Models
LTC1861HMS#PBF - Analog Devices - 3D model - Small Outline Packages - MS 10 MSOP-1
click to zoom

LTC1861HMS#PBF Details

  • Manufacturer Part Number:

    LTC1861HMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    3.3 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC1861HMS#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1861HMS#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and to keep the digital signals away from the analog signals.
  • To ensure the accuracy and stability of the ADC conversion results, it's essential to provide a clean and stable power supply, use a low-noise reference voltage, and minimize noise coupling into the analog input signals. Additionally, it's recommended to use a capacitor on the REFIN pin to filter out high-frequency noise.
  • The maximum sampling rate of the LTC1861HMS#PBF is 1.5Msps (megasamples per second). However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the analog input signals.
  • The sleep mode and wake-up functionality of the LTC1861HMS#PBF can be handled by asserting the SHDN pin low to enter sleep mode and de-asserting it to wake up the device. The wake-up time is typically around 5μs, and the device can be configured to wake up on a conversion complete or an external interrupt.
  • The recommended method for driving the analog input signals to the LTC1861HMS#PBF involves using a low-impedance source, such as an op-amp buffer, to drive the analog input signals. This helps to minimize the source impedance and ensure accurate ADC conversions.
