LTC1863CGNPBF - Analog Devices

Description: AEC-Q100 Qualified for Automotive Applications n Sample Rate: 200ksps n 16-Bit No Missing Codes and ±2LSB Max INL n 8-Channel Multiplexer with: n Single-Ended or Differential Inputs and n Unipolar or Bipolar Conversion Modes n SPI/MICROWIRE Serial I/O n Signal-to-Noise Ratio: 89dB n Single 5V Operation n On-Chip or External Reference n Low Power: 1.3mA at 200ksps, 0.76mA at 100ksps n Sleep Mode n Automatic Nap Mode Between Conversions n 16-Pin Narrow SSOP Package

Download LTC1863CGNPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

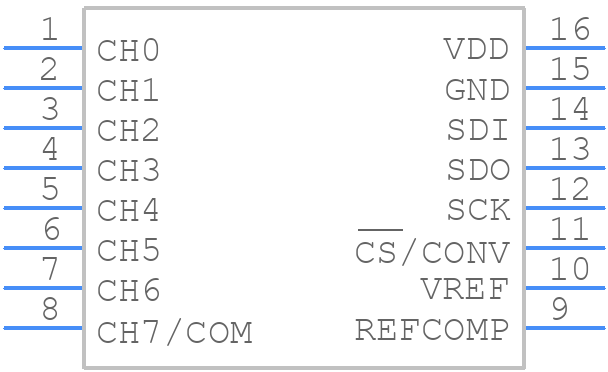

LTC1863CGNPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1863CGNPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom
3D Models
LTC1863CGNPBF - Analog Devices - 3D model - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom

LTC1863CGNPBF Details

  • Manufacturer Part Number:

    LTC1863CGNPBF

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LTC1863CGNPBF Overview

Use the download button to access the LTC1863CGNPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC18, or try a keyword search, such as Analog to Digital Converters
