LTC1864ACMS8PBF - Analog Devices

Description: 16-Bit 250ksps ADCs in MSOP Package n Single 5V Supply n Low Supply Current: 850μA (Typ) n Auto Shutdown Reduces Supply Current to 2μA at 1ksps n True Differential Inputs n 1-Channel (LTC1864) or 2-Channel (LTC1865) Versions n SPI/MICROWIRE™ Compatible Serial I/O n 16-Bit Upgrade to 12-Bit LTC1286/LTC1298 n Pin Compatible with 12-Bit LTC1860/LTC1861 n Guaranteed Operation to +125°C (MSOP Package)

Download LTC1864ACMS8PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

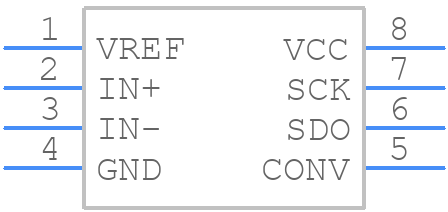

LTC1864ACMS8PBF - Analog Devices - PCB symbol
