LTC1864CMS8#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC1864CMS8#PBF - Analogue to Digital Converter, 16 bit, 250 kSPS, Differential, Serial, Single, 4.75 V

Download LTC1864CMS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

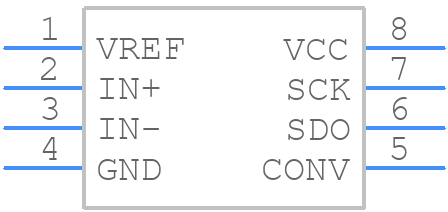

Symbol
LTC1864CMS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1864CMS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8
click to zoom
3D Models
LTC1864CMS8#PBF - Analog Devices - 3D model - Small Outline Packages - MS8
click to zoom

LTC1864CMS8#PBF Details

  • Manufacturer Part Number:

    LTC1864CMS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    3.2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC1864CMS8#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1864CMS8#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure proper calibration, the LTC1864CMS8#PBF requires a calibration cycle during power-up. The device has an internal calibration circuit that sets the ADC's gain and offset. The calibration cycle can be initiated by asserting the CAL pin low for at least 10 clock cycles. After calibration, the device is ready for accurate ADC conversions.
  • The maximum sampling rate of the LTC1864CMS8#PBF is 1.5Msps. The power consumption of the device increases with the sampling rate. At the maximum sampling rate, the device consumes approximately 35mW of power. However, the power consumption can be reduced by lowering the sampling rate or using the device's power-down mode.
  • The LTC1864CMS8#PBF can be interfaced with a microcontroller or FPGA using a standard SPI interface. The device has a 3-wire SPI interface that consists of a clock input (SCK), a data input (SDI), and a data output (SDO). The microcontroller or FPGA can control the device's operation and read the ADC conversion results through this interface.
  • The LTC1864CMS8#PBF's performance is affected by temperature, with the ADC's gain and offset varying with temperature. To compensate for temperature effects, the device has an internal temperature sensor that can be used to monitor the temperature. The temperature data can be used to correct the ADC conversions, ensuring accurate results over the operating temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1864CMS8#PBF Overview

Use the download button to access the LTC1864CMS8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC18, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
