LTC1864LCMS8#TRPBF - Analog Devices

Description: Analog to Digital Converters - ADC 16-bit, 3V, 150ksps ADC in MSOP

Download LTC1864LCMS8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

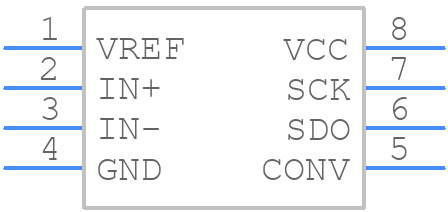

Symbol
LTC1864LCMS8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1864LCMS8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead_1
click to zoom
3D Models
LTC1864LCMS8#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead_1
click to zoom

LTC1864LCMS8#TRPBF Details

  • Manufacturer Part Number:

    LTC1864LCMS8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.5 V

  • Conversion Time-Max:

    4.66 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.15 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC1864LCMS8#TRPBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1864LCMS8 can be found in the application note AN115, which provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and minimize noise.
  • The selection of input and output capacitors depends on the specific application requirements. A good starting point is to use X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage. The datasheet provides guidelines for capacitor selection, and additional information can be found in the application note AN115.
  • The maximum operating temperature range for the LTC1864LCMS8 is -40°C to 125°C. However, the device can be operated at a reduced temperature range depending on the specific application requirements and thermal management.
  • Common issues with the LTC1864LCMS8 can be troubleshooted by checking the PCB layout, component values, and input/output connections. The application note AN115 provides guidelines for troubleshooting common issues, and additional support can be obtained from Analog Devices' technical support team.
  • The LTC1864LCMS8 is a commercial-grade device, but it can be used in high-reliability or aerospace applications with proper qualification and testing. Analog Devices provides additional resources and support for high-reliability applications, including radiation-hardened devices and custom testing.
