LTC1864LCS8#PBF - Analog Devices

Description: Analog to Digital Converters - ADC Pwr, 3V, 16-B, 150ksps 1- & 2-Ch ADCs

Download LTC1864LCS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

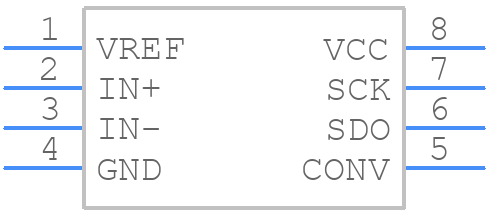

LTC1864LCS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1864LCS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package
click to zoom
3D Models
LTC1864LCS8#PBF - Analog Devices - 3D model - Small Outline Packages - S8 Package
click to zoom

LTC1864LCS8#PBF Details

  • Manufacturer Part Number:

    LTC1864LCS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, MSOP-10

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    3.2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0092%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC1864LCS8#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1864LCS8 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To optimize the performance of the LTC1864LCS8 in noisy environments, use shielding, filtering, and decoupling capacitors to reduce electromagnetic interference (EMI) and radio-frequency interference (RFI). Additionally, use a low-pass filter at the input to reduce high-frequency noise.
  • The maximum operating temperature range for the LTC1864LCS8 is -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related specifications.
  • The LTC1864LCS8 is designed to operate with a single 2.7V to 5.5V supply. While it may be possible to use the device with a different voltage supply, it is not recommended as it may affect the device's performance and accuracy. Consult the datasheet for specific voltage-related specifications.
  • To troubleshoot common issues with the LTC1864LCS8, check the power supply voltage, analog input voltage range, and digital output voltage levels. Ensure that the device is properly connected and configured, and consult the datasheet for specific troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1864LCS8#PBF Overview

Use the download button to access the LTC1864LCS8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC18, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
