LTC1865CS8#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC1865CS8#PBF - Analogue to Digital Converter, Dual, 16 bit, 250 kSPS, Differential, 3 Wire, Serial, Single, 4.75 V

Download LTC1865CS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

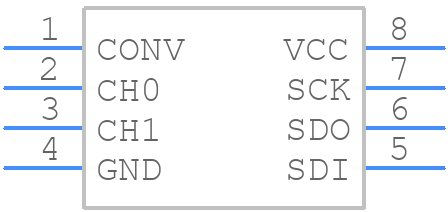

LTC1865CS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1865CS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom
3D Models
LTC1865CS8#PBF - Analog Devices - 3D model - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom

LTC1865CS8#PBF Details

  • Manufacturer Part Number:

    LTC1865CS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    3.2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LTC1865CS8#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1865CS8#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and to keep the digital signals away from the analog signals.
  • To ensure proper calibration, the LTC1865CS8#PBF requires a calibration cycle during power-up. The device has an internal calibration cycle that occurs after power-up, and it's recommended to wait for at least 10ms after power-up before initiating conversions. Additionally, the device should be operated within the recommended operating conditions, and the analog input should be within the specified range.
  • The maximum sampling rate of the LTC1865CS8#PBF is 250ksps. The power consumption of the device increases with the sampling rate, and it's recommended to adjust the sampling rate according to the application requirements to minimize power consumption. At maximum sampling rate, the device consumes around 35mW of power.
  • The LTC1865CS8#PBF has a sleep mode that can be enabled by pulling the SLEEP pin low. In sleep mode, the device consumes around 10uA of power. To wake up the device, the SLEEP pin should be pulled high, and the device will take around 10us to wake up and be ready for conversions.
  • The recommended input signal range for the LTC1865CS8#PBF is 0 to VREF (2.5V or 5V), and the recommended input impedance is 1kΩ or less. The input signal range and impedance affect the accuracy of the ADC conversions, and it's recommended to ensure the input signal is within the specified range and impedance to achieve accurate conversions.
