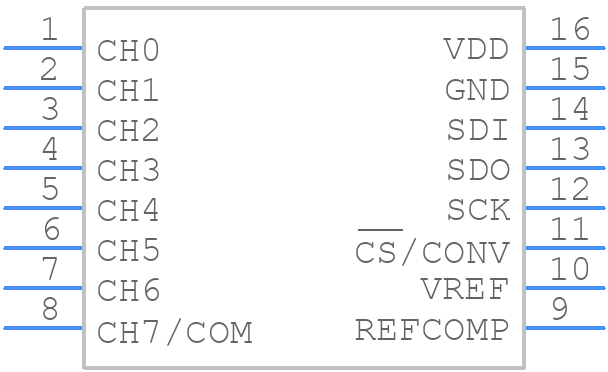

LTC1867LACGN#PBF - Analog Devices

LTC1867LACGN#PBF Frequently Asked Questions (FAQs)

• What is the recommended layout and placement for the LTC1867LACGN#PBF to minimize noise and ensure optimal performance?
  The recommended layout and placement for the LTC1867LACGN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and to keep the analog and digital signals separate.
• How do I ensure the accuracy and stability of the ADC conversion results?
  To ensure the accuracy and stability of the ADC conversion results, it's essential to provide a clean and stable power supply, use a low-noise reference voltage, and minimize noise coupling into the analog input signals. Additionally, it's recommended to use a capacitor on the REFIN pin to filter out high-frequency noise.
• What is the maximum sampling rate that can be achieved with the LTC1867LACGN#PBF?
  The maximum sampling rate of the LTC1867LACGN#PBF is 1.5Msps (megasamples per second) at a clock frequency of 50MHz. However, the actual sampling rate may vary depending on the specific application and system requirements.
• How do I interface the LTC1867LACGN#PBF with a microcontroller or FPGA?
  The LTC1867LACGN#PBF can be interfaced with a microcontroller or FPGA using a serial interface, such as SPI or I2C. The device provides a 3-wire serial interface, and the specific interface protocol will depend on the microcontroller or FPGA being used.
• What is the power consumption of the LTC1867LACGN#PBF, and how can I minimize power consumption in my design?
  The power consumption of the LTC1867LACGN#PBF is typically around 35mW at a supply voltage of 3.3V. To minimize power consumption, it's recommended to use a low-power mode, reduce the clock frequency, and use a low-dropout regulator to minimize power supply noise.
