LTC1867LIGN#WTRPBF - Analog Devices

Description: Micropower, 3V, 16-Bit, 8-Channel 175ksps ADCs

Download LTC1867LIGN#WTRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

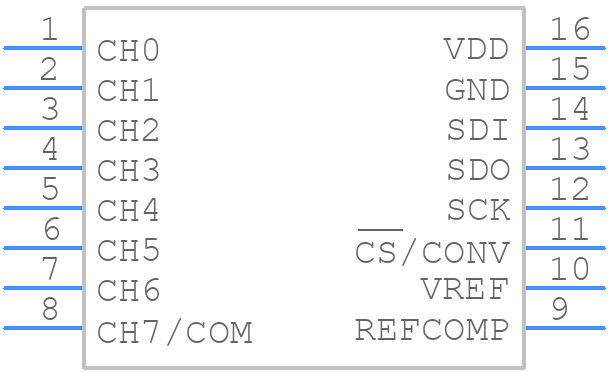

Symbol
LTC1867LIGN#WTRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1867LIGN#WTRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom
3D Models
LTC1867LIGN#WTRPBF - Analog Devices - 3D model - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom

LTC1867LIGN#WTRPBF Details

  • Manufacturer Part Number:

    LTC1867LIGN#WTRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    1.25 V

  • Analog Input Voltage-Min:

    -1.25 V

  • Conversion Time-Max:

    3.7 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.8895 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.175 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC1867LIGN#WTRPBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1867LIGN can be found in the application note AN115, which provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and minimize noise.
  • The selection of input and output capacitors depends on the specific application requirements. A good starting point is to use X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage. The datasheet provides guidelines for capacitor selection, and additional information can be found in the application note AN115.
  • The maximum ambient temperature for the LTC1867LIGN is 85°C, but the device can operate up to 125°C with derating. It's essential to consider the thermal management and heat dissipation in the system design to ensure reliable operation.
  • Yes, the LTC1867LIGN is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured with a high-reliability process. However, it's essential to review the specific requirements of the application and ensure that the device meets all the necessary qualifications and standards.
  • Troubleshooting issues with the LTC1867LIGN requires a systematic approach. Start by reviewing the application circuit and ensuring that it meets the recommended layout and component selection guidelines. Use oscilloscopes and other measurement tools to identify the source of the issue. The application note AN115 provides additional guidance on troubleshooting and debugging techniques.
