LTC1982ES6#TRMPBF - Analog Devices

Description: Linear Technology LTC1982ES6#TRMPBF, Dual Isolated Gate Driver,, 1.8 → 5 V, High Side, 6-Pin SOT-23

Download LTC1982ES6#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

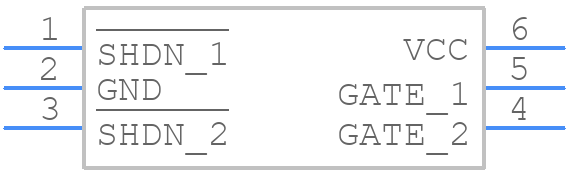

Symbol
LTC1982ES6#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1982ES6#TRMPBF - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - 6-Lead Plastic SOT-23
click to zoom
3D Models
LTC1982ES6#TRMPBF - Analog Devices - 3D model - SOT23 (6-Pin) - 6-Lead Plastic SOT-23
click to zoom

LTC1982ES6#TRMPBF Details

  • Manufacturer Part Number:

    LTC1982ES6#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, SOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1636

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.95 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max (Isup):

    0.03 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    TRIPLER

  • Switching Frequency-Max:

    600 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

LTC1982ES6#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1982ES6 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a small resistor (e.g., 10Ω) in series with the output can help dampen oscillations.
  • The LTC1982ES6 is rated for operation from -40°C to 125°C. However, the device's performance may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain optimal performance.
  • Yes, the LTC1982ES6 is suitable for high-reliability and aerospace applications. However, it's essential to follow the recommended design and manufacturing guidelines, and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
  • To troubleshoot issues with the LTC1982ES6, start by verifying the power supply voltage, input and output voltages, and the device's operating frequency. Use an oscilloscope to check for oscillations or noise on the output. Also, ensure that the PCB layout and component values are correct, and that the device is properly soldered and connected.
