LTC2053CDD#TRPBF - Analog Devices

Description: Instrumentation Amplifiers Prec, R2R, Zero-Drift, Res-Progmable Ins

Download LTC2053CDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

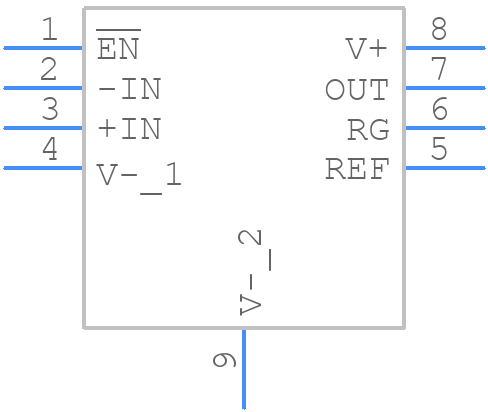

LTC2053CDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2053CDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead (3mm × 3mm) Plastic DFN
click to zoom
3D Models
LTC2053CDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - 8-Lead (3mm × 3mm) Plastic DFN
click to zoom

LTC2053CDD#TRPBF Details

  • Manufacturer Part Number:

    LTC2053CDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.01 µA

  • Bandwidth (3dB)-Nom:

    0.2 MHz

  • Common-mode Reject Ratio-Min:

    105 dB

  • Input Offset Current-Max (IIO):

    0.003 µA

  • Input Offset Voltage-Max:

    20 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -5.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Non-linearity-Max:

    0.001%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    0.2 V/us

  • Supply Current-Max:

    1 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2053CDD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2053CDD#TRPBF involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accurate voltage measurement, use a low-impedance voltage source, keep the input traces short and shielded, and use a high-quality voltage reference. Also, make sure to follow the recommended input common-mode voltage range and input voltage swing.
  • The LTC2053CDD#TRPBF has an operating temperature range of -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, so it's essential to consider the application's temperature requirements and potential thermal gradients.
  • Yes, the LTC2053CDD#TRPBF is suitable for high-reliability and aerospace applications. It's manufactured using a high-reliability process, and Analog Devices Inc provides additional documentation and support for these types of applications. However, it's essential to consult with Analog Devices Inc and follow their guidelines for high-reliability applications.
  • To troubleshoot common issues with the LTC2053CDD#TRPBF, start by checking the PCB layout, input and output connections, and power supply quality. Verify that the device is properly configured and that the input common-mode voltage is within the recommended range. Use oscilloscopes and other diagnostic tools to identify and isolate the issue. Consult the datasheet and application notes for guidance, and contact Analog Devices Inc's technical support if needed.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2053CDD#TRPBF Overview

Use the download button to access the LTC2053CDD#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC20, or try a keyword search, such as Instrumentation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
