LTC2055IDD#PBF - Analog Devices

Description: IC OPAMP CHOPPER 500KHZ RRO 8DFN

Download LTC2055IDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

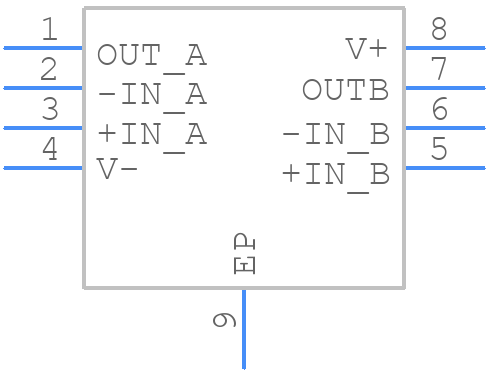

LTC2055IDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2055IDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead (3mm × 3mm) Plastic DFN
click to zoom
3D Models
LTC2055IDD#PBF - Analog Devices - 3D model - Small Outline No-lead - 8-Lead (3mm × 3mm) Plastic DFN
click to zoom

LTC2055IDD#PBF Details

  • Manufacturer Part Number:

    LTC2055IDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, 0.80 MM HEIGHT, LEAD FREE, PLASTIC, MO-229WEED-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00015 µA

  • Common-mode Reject Ratio-Min:

    115 dB

  • Common-mode Reject Ratio-Nom:

    130 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    3 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    0.5 V/us

  • Supply Current-Max:

    0.18 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    500

  • Voltage Gain-Min:

    562341.3

  • Wideband:

    YES

  • Width:

    3 mm

LTC2055IDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2055IDD#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and direct.
  • To ensure the LTC2055IDD#PBF operates within its specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. A thermal interface material can be used to improve heat transfer between the device and the heat sink. Additionally, the device should be placed in a well-ventilated area to prevent overheating.
  • Exceeding the maximum ratings of the LTC2055IDD#PBF can lead to permanent damage to the device, including latch-up, thermal runaway, or even catastrophic failure. It's essential to ensure that the device operates within its specified voltage, current, and temperature ratings to prevent damage and ensure reliable operation.
  • To troubleshoot issues with the LTC2055IDD#PBF, start by verifying the PCB layout and ensuring that the device is properly connected and powered. Check for any signs of overheating, and verify that the input and output signals are within the specified ranges. Use an oscilloscope to visualize the signals and identify any anomalies. If the issue persists, consult the datasheet and application notes for guidance or contact Analog Devices' technical support.
  • The LTC2055IDD#PBF is a high-reliability device, but it's essential to follow proper design and manufacturing practices to ensure the device meets the required safety and reliability standards. Consult the datasheet and application notes for guidance on using the device in high-reliability or safety-critical applications.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LTC2055IDD#PBF Overview

Use the download button to access the LTC2055IDD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC20, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
