LTC2162CUK#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 16-bit, 65Msps, 1.8V Low-Power ADC, Parallel Outputs

Download LTC2162CUK#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

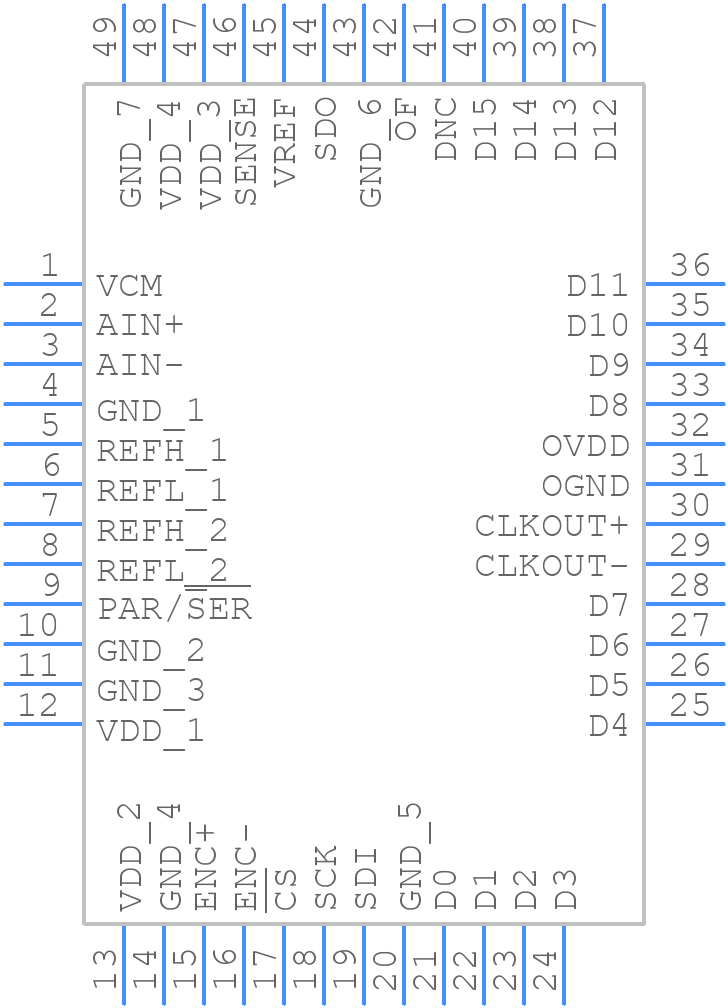

LTC2162CUK#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2162CUK#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UK Package 48 Lead Plastic QFN (7mm x 7mm)
click to zoom
3D Models
LTC2162CUK#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UK Package 48 Lead Plastic QFN (7mm x 7mm)
click to zoom

LTC2162CUK#PBF Details

  • Manufacturer Part Number:

    LTC2162CUK#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    7 X 7 MM, LEAD FREE, PLASTIC, MO-220WKKD-2, QFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    05-08-1704

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0092%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    65 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    54 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

LTC2162CUK#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2162CUK involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the ADC and the analog input pins. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin with a 0.1uF capacitor.
  • To ensure accurate conversion results, it's essential to follow proper PCB layout guidelines, use a high-quality analog input signal, and ensure that the analog input signal is within the specified range. Additionally, the ADC should be operated within its specified temperature range, and the clock frequency should be within the recommended range.
  • The maximum sampling rate of the LTC2162CUK is 100Msps (megasamples per second). However, the actual sampling rate may be limited by the system clock frequency, the analog input signal bandwidth, and the digital output data rate.
  • Yes, the LTC2162CUK can be used in a multi-channel application. The ADC has a serial output interface that allows it to be connected to a microcontroller or an FPGA, making it suitable for multi-channel applications. However, the user needs to ensure that the analog input signals are properly multiplexed and that the ADC is properly synchronized with the system clock.
  • The power consumption of the LTC2162CUK depends on the operating mode and the clock frequency. In normal operation, the typical power consumption is around 350mW. However, in sleep mode, the power consumption can be as low as 10mW.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2162CUK#PBF Overview

Use the download button to access the LTC2162CUK#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC21, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
