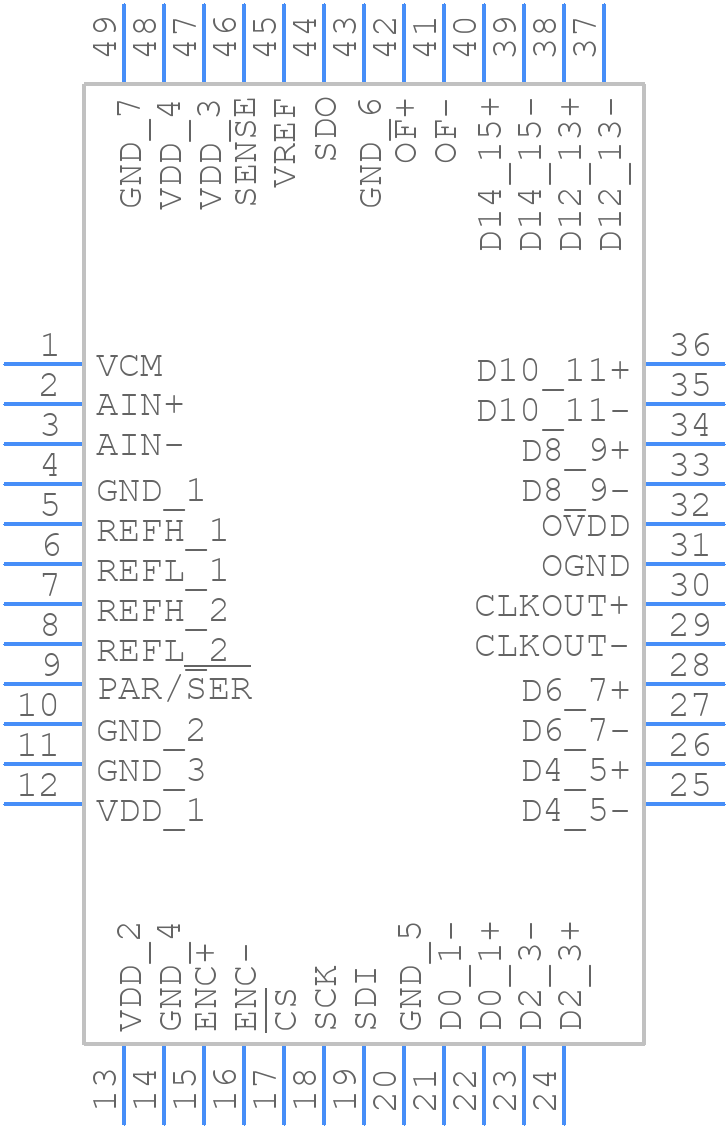

LTC2164IUK#PBF - Analog Devices

LTC2164IUK#PBF Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the LTC2164?
  A good PCB layout for the LTC2164 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. It's also recommended to place the ADC near the analog signal sources and to use a star-ground configuration.
• How do I ensure accurate conversion results with the LTC2164?
  To ensure accurate conversion results, it's essential to follow proper PCB layout guidelines, use a low-noise power supply, and minimize electromagnetic interference (EMI). Additionally, ensure that the analog input signals are properly filtered and buffered, and that the ADC is operated within its specified temperature range.
• What is the maximum sampling rate of the LTC2164, and how does it affect the power consumption?
  The maximum sampling rate of the LTC2164 is 400 kSPS. As the sampling rate increases, the power consumption of the ADC also increases. However, the power consumption can be reduced by using the ADC's power-down mode or by reducing the clock frequency.
• How do I interface the LTC2164 with a microcontroller or FPGA?
  The LTC2164 can be interfaced with a microcontroller or FPGA using a serial peripheral interface (SPI) or a parallel interface. The ADC's digital output can be connected directly to the microcontroller or FPGA's digital input pins. Ensure that the interface signals are properly buffered and terminated to prevent signal degradation.
• What is the effect of temperature on the LTC2164's performance?
  The LTC2164's performance is affected by temperature, with changes in offset voltage, gain error, and linearity. The ADC's performance is specified over a temperature range of -40°C to 125°C. Ensure that the ADC is operated within its specified temperature range for optimal performance.
