LTC2172CUKG-12#PBF - Analog Devices

Description: 12-Bit, 65Msps Low Power Quad ADCs

Download LTC2172CUKG-12#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTC2172CUKG-12#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

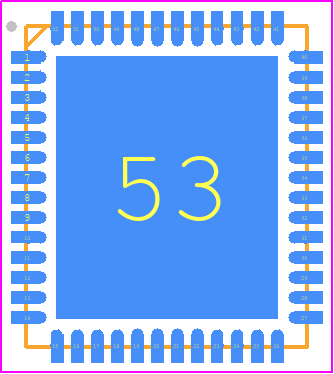

LTC2172CUKG-12#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UKG Package 52-Lead Plastic QFN (7mm × 8mm)
click to zoom
3D Models
LTC2172CUKG-12#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UKG Package 52-Lead Plastic QFN (7mm × 8mm)
click to zoom

LTC2172CUKG-12#PBF Details

  • Manufacturer Part Number:

    LTC2172CUKG-12#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    7 X 8 MM, LEAD FREE, PLASTIC, QFN-52

  • Pin Count:

    52

  • Manufacturer Package Code:

    05-08-1729

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PQCC-N52

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC52,.27X.31,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    65 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

LTC2172CUKG-12#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2172 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to place it close to the output pins.
  • The choice of output filter components depends on the specific requirements of your application. In general, a 2nd-order filter with a 100nF capacitor and a 10Ω resistor is a good starting point. However, you may need to adjust the values based on your specific noise requirements and output impedance.
  • The maximum input voltage that the LTC2172 can handle is 5.5V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or a voltage limiter to ensure that the input voltage stays within the recommended range.
  • The LTC2172 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's specifications and to use a heat sink or a thermal management system to keep the device temperature within the recommended range.
  • The LTC2172's internal registers can be programmed using a serial interface such as SPI or I2C. The specific programming sequence and register addresses can be found in the device's datasheet. It's recommended to use a programming tool or a microcontroller to program the registers.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2172CUKG-12#PBF Overview

Use the download button to access the LTC2172CUKG-12#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC21, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
