LTC2173CUKG-12#PBF - Analog Devices

Description: 12-Bit, 80Msps Low Power Quad ADCs –0.3V to 3.9V –0.3V to (OVDD + 0.3V) –40°C to 85°C

Download LTC2173CUKG-12#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTC2173CUKG-12#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

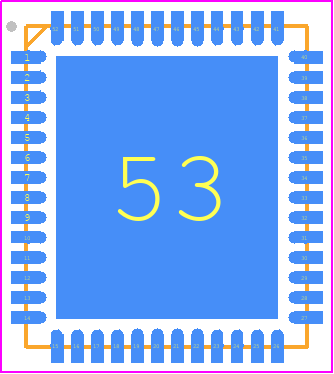

LTC2173CUKG-12#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UKG Package 52-Lead Plastic QFN (7mm × 8mm)
click to zoom
3D Models
LTC2173CUKG-12#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UKG Package 52-Lead Plastic QFN (7mm × 8mm)
click to zoom

LTC2173CUKG-12#PBF Details

  • Manufacturer Part Number:

    LTC2173CUKG-12#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    7 X 8 MM, LEAD FREE, PLASTIC, QFN-52

  • Pin Count:

    52

  • Manufacturer Package Code:

    05-08-1729

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PQCC-N52

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC52,.27X.31,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    80 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

LTC2173CUKG-12#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2173CUKG-12#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to minimize the length of the traces connecting the device to the power supplies.
  • To optimize power consumption, ensure that the device is operated within its recommended supply voltage range (2.5V to 3.3V). Additionally, consider using the device's power-down mode when not in use, and optimize the clock frequency to the lowest required for the application. Furthermore, using a low-dropout regulator (LDO) to power the device can also help reduce power consumption.
  • The maximum clock frequency that can be used with the LTC2173CUKG-12#PBF is 100MHz. However, it's recommended to consult the device's datasheet and application notes for specific guidance on clock frequency selection and optimization.
  • To ensure reliable data transmission over long cables, use a differential signaling scheme, such as LVDS or PECL, and ensure that the cable is properly terminated. Additionally, consider using a cable with a high-quality shield and a low capacitance per unit length. Furthermore, the LTC2173CUKG-12#PBF has a built-in pre-emphasis feature that can help improve signal integrity over long cables.
  • The recommended operating temperature range for the LTC2173CUKG-12#PBF is -40°C to 85°C. However, it's recommended to consult the device's datasheet and application notes for specific guidance on temperature-related performance and reliability considerations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2173CUKG-12#PBF Overview

Use the download button to access the LTC2173CUKG-12#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC21, or try a keyword search, such as Analog to Digital Converters
