LTC2248CUH#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 14-B, 65Msps L Pwr 3V ADCs

Download LTC2248CUH#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

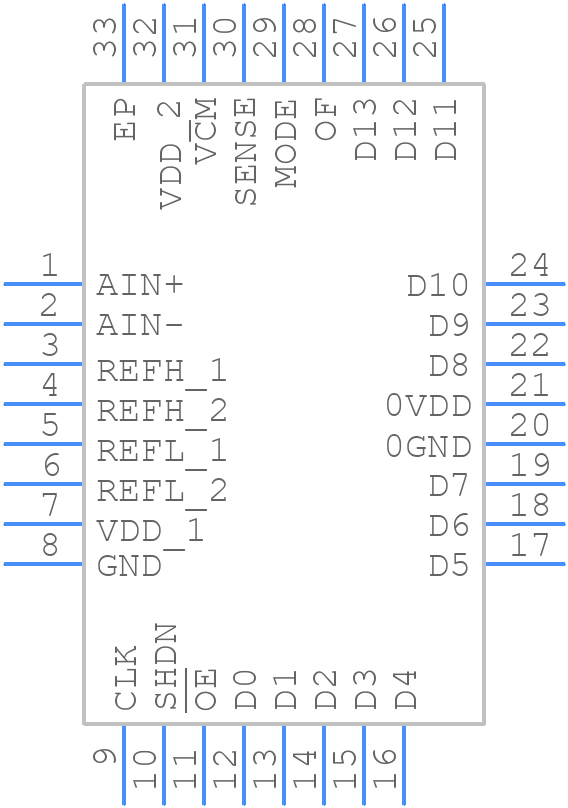

LTC2248CUH#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2248CUH#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Plastic QFN (5mm × 5mm)
click to zoom
3D Models
LTC2248CUH#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Plastic QFN (5mm × 5mm)
click to zoom

LTC2248CUH#PBF Details

  • Manufacturer Part Number:

    LTC2248CUH#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.9 V

  • Analog Input Voltage-Min:

    1 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    65 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC2248CUH#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2248CUH involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for the VCC pin.
  • The LTC2248CUH requires a single 1.8V to 3.3V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirement is to power up the VCC pin before the OVDD pin, and to power down the OVDD pin before the VCC pin.
  • The LTC2248CUH can support clock frequencies up to 80 MSPS. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • To optimize the performance of the LTC2248CUH, it's recommended to use a high-quality clock source, to minimize the noise on the analog input pins, and to use a low-noise power supply. Additionally, the device's performance can be optimized by adjusting the input common-mode voltage and the gain settings.
  • The recommended operating temperature range for the LTC2248CUH is -40°C to 85°C. However, the device can operate at temperatures up to 125°C with reduced performance and reliability.
