LTC2264CUJ-14#PBF - Analog Devices

Description: n 2-Channel Simultaneous Sampling ADC n 73.7dB SNR n 90dB SFDR n Low Power: 171mW/113mW/94mW Total n 85mW/56mW/47mW per Channel n Single 1.8V Supply n Serial LVDS Outputs: 1 or 2 Bits per Channel n Selectable Input Ranges: 1VP-P to 2VP-P n 800MHz Full Power Bandwidth S/H n Shutdown and Nap Modes n Serial SPI Port for Configuration n Pin Compatible 14-Bit and 12-Bit Versions n 40-Pin (6mm × 6mm) QFN Package

Download LTC2264CUJ-14#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

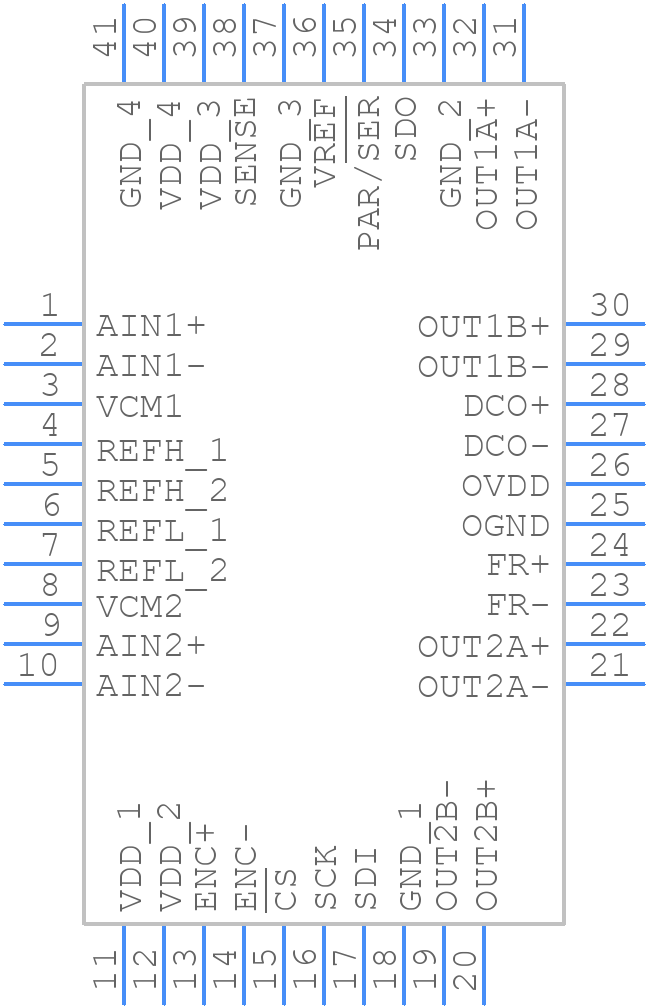

LTC2264CUJ-14#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2264CUJ-14#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UJ Package 40-Lead Plastic QFN (6mm × 6mm) (Reference LTC DWG # 05-08-1728 Rev Ø)
click to zoom
3D Models
LTC2264CUJ-14#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UJ Package 40-Lead Plastic QFN (6mm × 6mm) (Reference LTC DWG # 05-08-1728 Rev Ø)
click to zoom

LTC2264CUJ-14#PBF Details

  • Manufacturer Part Number:

    LTC2264CUJ-14#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    6 X 6 MM, LEAD FREE, PLASTIC, QFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    05-08-1728

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Linearity Error-Max (EL):

    0.0183%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    40 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    63 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LTC2264CUJ-14#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2264CUJ-14 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the ADC and the analog input pins. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin from the digital supply.
  • To ensure accurate conversions with the LTC2264CUJ-14, it's essential to provide a clean and stable analog input signal, use a high-quality reference voltage, and minimize noise and interference on the analog input pins. Additionally, it's recommended to use the internal reference voltage and to calibrate the ADC periodically to compensate for any offset or gain errors.
  • The maximum sampling rate of the LTC2264CUJ-14 is 125Msps, but this can be limited by the analog input bandwidth, the clock frequency, and the digital output data rate. In practice, the achievable sampling rate may be lower depending on the specific application and the quality of the analog input signal.
  • The LTC2264CUJ-14 can be interfaced with a microcontroller or FPGA using a parallel or serial interface. The parallel interface uses a 16-bit data bus, while the serial interface uses a SPI-compatible interface. The specific interface used depends on the requirements of the application and the capabilities of the microcontroller or FPGA.
  • The power consumption of the LTC2264CUJ-14 depends on the operating mode, the clock frequency, and the sampling rate. In typical operating conditions, the power consumption is around 350mW, but this can be reduced to around 20mW in low-power mode.
