LTC2266CUJ-12#PBF - Analog Devices

Description: 12-Bit, 80Msps Low Power Dual ADCs

Download LTC2266CUJ-12#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

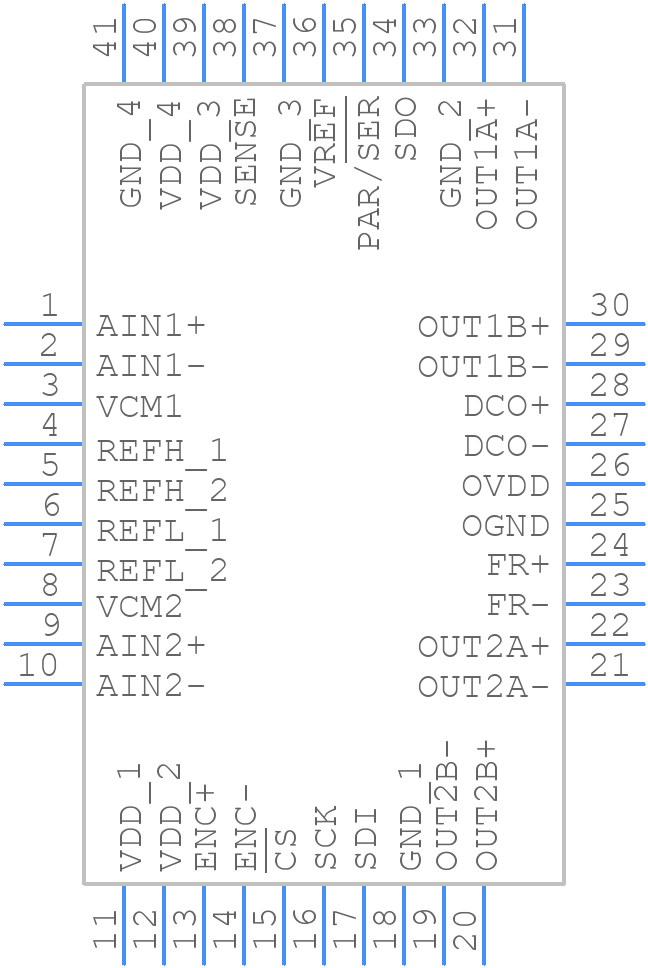

Symbol
LTC2266CUJ-12#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2266CUJ-12#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UJ Package 40-Lead Plastic QFN (6mm × 6mm) (Reference LTC DWG # 05-08-1728 Rev Ø)
click to zoom
3D Models
LTC2266CUJ-12#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UJ Package 40-Lead Plastic QFN (6mm × 6mm) (Reference LTC DWG # 05-08-1728 Rev Ø)
click to zoom

LTC2266CUJ-12#PBF Details

  • Manufacturer Part Number:

    LTC2266CUJ-12#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    6 X 6 MM, LEAD FREE, PLASTIC, QFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    05-08-1728

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    80 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    109 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LTC2266CUJ-12#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2266CUJ-12 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the ADC and the analog input pins. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin with a 0.1uF capacitor.
  • To ensure accurate conversions with the LTC2266CUJ-12, it's essential to follow proper PCB layout guidelines, use a stable and low-noise power supply, and ensure that the analog input signals are within the specified range. Additionally, it's recommended to use a low-jitter clock source and to avoid switching noise on the digital lines during conversions.
  • The maximum sampling rate of the LTC2266CUJ-12 is 125Msps, but this can be limited by the system's clock frequency, the analog input bandwidth, and the digital output data rate. It's essential to consult the datasheet and application notes for specific guidance on achieving the highest possible sampling rate.
  • The LTC2266CUJ-12 can be interfaced with a microcontroller or FPGA using a parallel or serial interface. The parallel interface requires 16 data lines, while the serial interface uses a single data line and a clock line. The specific interface requirements will depend on the system's architecture and the desired data transfer rate.
  • The power consumption of the LTC2266CUJ-12 depends on the operating frequency, the sampling rate, and the power supply voltage. Typically, the power consumption is around 350mW at 125Msps with a 1.8V power supply. However, this can vary depending on the specific application and system requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
