LTC2301IMS#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2301IMS#PBF - Analogue to Digital Converter, 12 bit, 14 kSPS, Differential, Single Ended, 2 Wire, I2C, Serial

Download LTC2301IMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

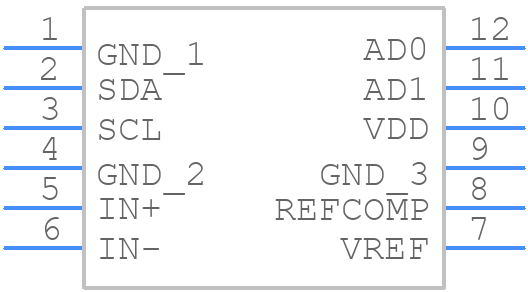

Symbol
LTC2301IMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2301IMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP 12 PIN
click to zoom
3D Models
LTC2301IMS#PBF - Analog Devices - 3D model - Small Outline Packages - MSOP 12 PIN
click to zoom

LTC2301IMS#PBF Details

  • Manufacturer Part Number:

    LTC2301IMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1668

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.048 V

  • Analog Input Voltage-Min:

    -2.048 V

  • Conversion Time-Max:

    1.6 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.014 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2301IMS#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the LTC2301IMS#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a low-ESR capacitor for the VREF pin and to keep the clock signal away from the analog inputs.
  • The LTC2301IMS#PBF is specified to operate from -40°C to 125°C. To ensure operation within this range, it's essential to provide adequate heat sinking, avoid overheating, and use a thermally conductive material for the PCB. Additionally, consider using thermal simulation tools to estimate the junction temperature and ensure it remains within the specified range.
  • The recommended power-up sequence for the LTC2301IMS#PBF is to apply the analog supply voltage (VCC) first, followed by the digital supply voltage (DVCC), and then the clock signal. This sequence helps prevent damage to the device and ensures correct operation.
  • The LTC2301IMS#PBF outputs 12-bit data, which can be processed using a microcontroller or an FPGA. A recommended data processing technique involves using a digital filter, such as a moving average or a low-pass filter, to reduce noise and improve the signal-to-noise ratio. Additionally, consider using a data averaging technique to improve the overall accuracy of the conversion results.
  • The LTC2301IMS#PBF does not require calibration, as it is a ratiometric ADC. However, it's recommended to perform a system-level calibration to account for any gain or offset errors in the overall system. This can be done by applying a known input voltage and adjusting the system's gain and offset accordingly.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2301IMS#PBF Overview

Use the download button to access the LTC2301IMS#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC23, or try a keyword search, such as Analog to Digital Converters
