LTC2310CMSE-16#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 16-B, 2Msps Diff In ADC w/ Wide In Commo

Download LTC2310CMSE-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

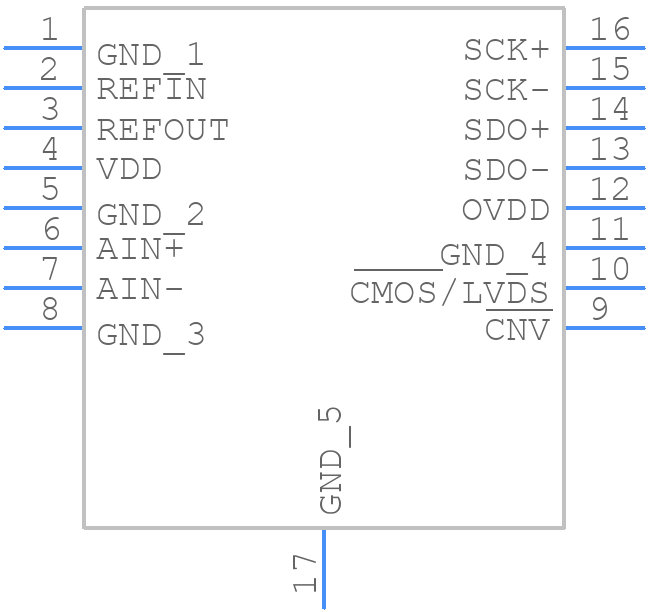

LTC2310CMSE-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2310CMSE-16#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LTC2310CMSE-16#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LTC2310CMSE-16#PBF Details

  • Manufacturer Part Number:

    LTC2310CMSE-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HTSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.054 V

  • Analog Input Voltage-Min:

    -2.042 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2310CMSE-16#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2310CMSE-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it is recommended to use a low-ESR capacitor for the VCC pin and to keep the clock input traces away from the analog input traces.
  • The LTC2310CMSE-16#PBF requires a calibration process to ensure accurate conversion results. This can be done by applying a known input voltage and adjusting the offset and gain registers accordingly. The datasheet provides a detailed calibration procedure, and it is recommended to follow it carefully to ensure optimal performance.
  • The maximum sampling rate of the LTC2310CMSE-16#PBF is 1.5Msps, and it can be achieved by setting the clock frequency to 30MHz. However, increasing the sampling rate also increases the power consumption, so it is recommended to optimize the sampling rate based on the specific application requirements.
  • The LTC2310CMSE-16#PBF has built-in overvoltage protection on the analog input pins, which can withstand voltages up to ±20V without damage. However, it is still recommended to use external protection circuitry, such as voltage limiters or clamp diodes, to prevent damage from excessive voltage transients.
  • Yes, the LTC2310CMSE-16#PBF can be used in a multi-channel application by using multiple devices or by using a single device with a multiplexer. To synchronize the conversions, it is recommended to use a common clock source and to stagger the conversion cycles to avoid simultaneous switching noise.
