LTC2311CMSE-12#PBF - Analog Devices

Description: 12-Bit + Sign, 5Msps Differential Input ADC with Wide Input Common Mode Range

Download LTC2311CMSE-12#PBF Model

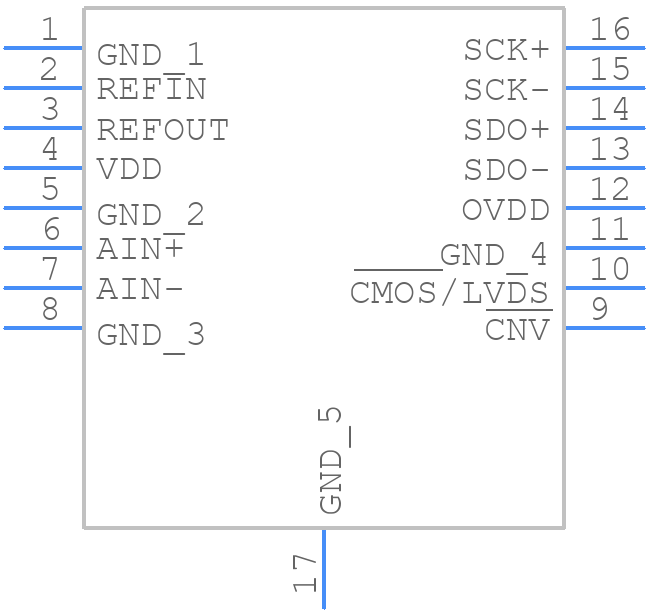

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC2311CMSE-12#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1667 Rev F)
click to zoom

LTC2311CMSE-12#PBF Details

  • Manufacturer Part Number:

    LTC2311CMSE-12#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HTSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    2.054 V

  • Analog Input Voltage-Min:

    -2.042 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2311CMSE-12#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2311 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground layer is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure accurate timing and synchronization, it is essential to use a high-quality clock source, such as a crystal oscillator or a low-jitter clock generator. The LTC2311 also has a clock synchronization feature that allows it to synchronize with an external clock source. Additionally, the device has a built-in phase-locked loop (PLL) that can be used to generate a stable clock signal.
  • The maximum data transfer rate of the LTC2311 depends on the specific configuration and the interface used. In general, the device can support data transfer rates of up to 100 MSPS (megasamples per second) in parallel mode and up to 50 MSPS in serial mode. However, the actual data transfer rate may be limited by the system's bandwidth, noise, and other factors.
  • The LTC2311 has built-in overvoltage and undervoltage protection features that can detect and respond to abnormal voltage conditions. The device can be configured to generate an alert or reset signal in response to overvoltage or undervoltage conditions. Additionally, external voltage monitoring and protection circuits can be used to provide additional protection for the device and the system.
  • The power consumption of the LTC2311 depends on the specific configuration, operating frequency, and interface used. In general, the device has a typical power consumption of around 100 mW to 200 mW. To minimize power consumption, it is recommended to use the lowest possible operating frequency, disable unused features, and use power-down modes when the device is not in use.
