LTC2325CUKG-16#PBF - Analog Devices

Description: Analog to Digital Converters - ADC Quad, 16-Bit, 5Msps/ch Simultaneous Sampling SAR ADC

Download LTC2325CUKG-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTC2325CUKG-16#PBF - Analog Devices - PCB symbol
click to zoom

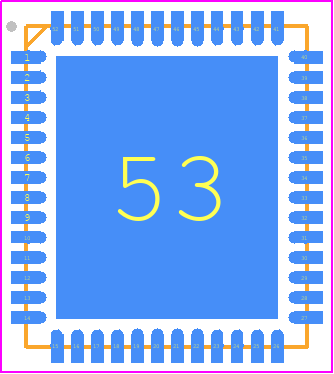

PCB Footprints
LTC2325CUKG-16#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - Package 52-Lead Plastic QFN (7mm × 8mm)-1
click to zoom
3D Models
LTC2325CUKG-16#PBF - Analog Devices - 3D model - Quad Flat No-Lead - Package 52-Lead Plastic QFN (7mm × 8mm)-1
click to zoom

LTC2325CUKG-16#PBF Details

  • Manufacturer Part Number:

    LTC2325CUKG-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    52

  • Manufacturer Package Code:

    05-08-1729

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.064 V

  • Analog Input Voltage-Min:

    -2.034 V

  • Conversion Time-Max:

    0.17 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PQCC-N52

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Linearity Error-Max (EL):

    0.0137%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Sample Rate:

    5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

LTC2325CUKG-16#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Additionally, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • The LTC2325CUKG-16#PBF has an internal calibration circuit that is enabled by applying a voltage to the CAL pin. The calibration process is initiated by applying a voltage to the CAL pin and then releasing it. The device will then perform an internal calibration and store the results in its internal registers.
  • The maximum sampling rate of the LTC2325CUKG-16#PBF is 1.5Msps. The power consumption of the device increases with the sampling rate, so it's essential to consider the trade-off between sampling rate and power consumption in the system design.
  • The LTC2325CUKG-16#PBF outputs 16-bit data in a twos-complement format. The output data can be handled by a microcontroller or a digital signal processor, and it's essential to consider the data format and the interface requirements when designing the system.
  • The recommended power-up sequence for the LTC2325CUKG-16#PBF is to apply the analog power supply (AVCC) before the digital power supply (DVCC). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper device operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2325CUKG-16#PBF Overview

Use the download button to access the LTC2325CUKG-16#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC23, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
