LTC2325HUKG-16#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2325HUKG-16#PBF - ADC, QUAD, SAR, 16BIT, 5MSPS, QFN-52

Download LTC2325HUKG-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTC2325HUKG-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

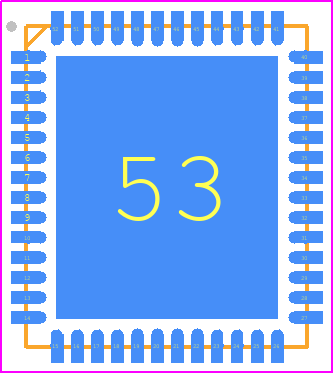

LTC2325HUKG-16#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UKG Package 52-Lead Plastic QFN (7mm × 8mm)_1
click to zoom
3D Models
LTC2325HUKG-16#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UKG Package 52-Lead Plastic QFN (7mm × 8mm)_1
click to zoom

LTC2325HUKG-16#PBF Details

  • Manufacturer Part Number:

    LTC2325HUKG-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    52

  • Manufacturer Package Code:

    05-08-1729

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.064 V

  • Analog Input Voltage-Min:

    -2.034 V

  • Conversion Time-Max:

    0.17 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PQCC-N52

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Linearity Error-Max (EL):

    0.0137%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Sample Rate:

    5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

LTC2325HUKG-16#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Additionally, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • The LTC2325HUKG-16#PBF has an internal calibration circuit that is performed during power-up. However, it's recommended to perform an external calibration using an external voltage reference and a calibration signal to ensure accurate conversions.
  • The maximum sampling rate of the LTC2325HUKG-16#PBF is 1.5Msps, but it can be limited by the system's clock frequency, analog input bandwidth, and digital output data rate.
  • Use external voltage clamping circuits or voltage limiters to protect the analog input pins from overvoltage conditions. For undervoltage conditions, use a voltage regulator or a voltage supervisor to ensure the input voltage is within the recommended operating range.
  • The recommended power-up sequence is to apply the analog power supply (AVCC) first, followed by the digital power supply (DVCC), and then the clock signal. This ensures that the internal circuitry is properly initialized and prevents latch-up or damage.
