LTC2328HMS-16#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 16-Bit, 1Msps, 10V True Bipolar, Pseudo-Differential Input SAR ADC with Serial Interface

Download LTC2328HMS-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

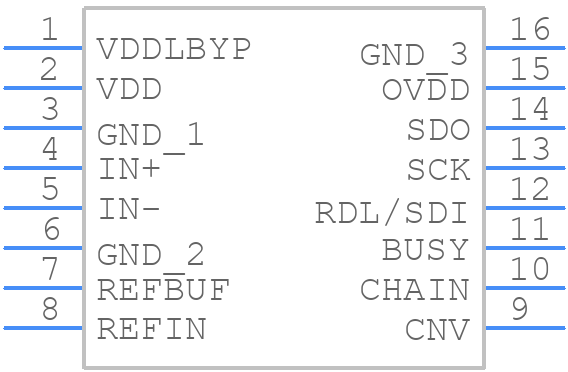

Symbol
LTC2328HMS-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2328HMS-16#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP-16-ren1
click to zoom
3D Models
LTC2328HMS-16#PBF - Analog Devices - 3D model - Small Outline Packages - MSOP-16-ren1
click to zoom

LTC2328HMS-16#PBF Details

  • Manufacturer Part Number:

    LTC2328HMS-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10.2525 V

  • Analog Input Voltage-Min:

    -10.2275 V

  • Conversion Time-Max:

    0.527 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC2328HMS-16#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2328HMS-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it is recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin with a 0.1uF capacitor.
  • The LTC2328HMS-16#PBF requires calibration to ensure accurate conversion results. This can be done by using the device's built-in calibration registers or by using an external calibration signal. The calibration process typically involves adjusting the offset and gain of the ADC to match the specific requirements of the application.
  • The maximum sampling rate of the LTC2328HMS-16#PBF is 1.5Msps, and it can be achieved by using the device's internal clock or an external clock source. The power consumption of the device increases with the sampling rate, and it is recommended to use the lowest sampling rate necessary for the application to minimize power consumption.
  • The LTC2328HMS-16#PBF has built-in overvoltage protection on the analog input pins, which can withstand voltages up to ±20V without damage. However, it is recommended to use external protection circuitry, such as voltage limiters or clamp diodes, to prevent damage from excessive voltage levels. Undervoltage conditions are handled by the device's internal voltage reference, which ensures accurate conversion results even at low input voltages.
  • The recommended power-up sequence for the LTC2328HMS-16#PBF involves powering up the VCC pin first, followed by the digital interface pins (such as SCK and SDI). The analog input pins should be powered up last, after the device has completed its internal power-up sequence.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2328HMS-16#PBF Overview

Use the download button to access the LTC2328HMS-16#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC23, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
