LTC2328HMS-18#PBF - Analog Devices

Description: IC ADC 18BIT 1MSPS 16MSOP

Download LTC2328HMS-18#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

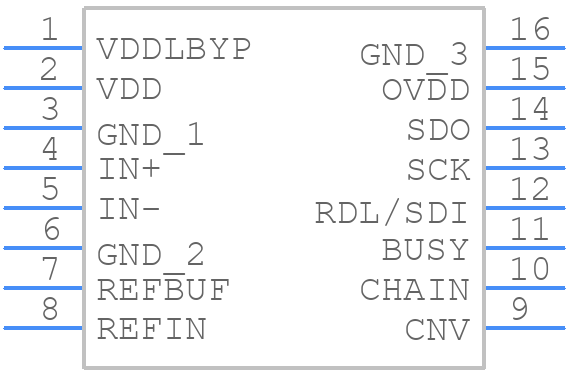

LTC2328HMS-18#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2328HMS-18#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 16-Lead Plastic MSOP
click to zoom
3D Models
LTC2328HMS-18#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 16-Lead Plastic MSOP
click to zoom

LTC2328HMS-18#PBF Details

  • Manufacturer Part Number:

    LTC2328HMS-18#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10.2525 V

  • Analog Input Voltage-Min:

    -10.2275 V

  • Conversion Time-Max:

    0.527 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.0019%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC2328HMS-18#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2328HMS-18#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to avoid routing digital signals near the analog inputs.
  • To properly terminate the differential inputs of the LTC2328HMS-18#PBF, use a 100Ω differential termination resistor (RTERM) between the positive and negative inputs, and a 50Ω series resistor (RSERIES) on each input line. This will help to match the impedance of the input signals and minimize reflections.
  • The maximum sampling rate of the LTC2328HMS-18#PBF is 1.5Msps, but this can be limited by the analog input bandwidth, the clock frequency, and the digital output data rate. Additionally, the sampling rate may be limited by the system's noise floor and the desired signal-to-noise ratio (SNR).
  • The LTC2328HMS-18#PBF requires a full-scale calibration to ensure accurate measurements. This involves applying a known input voltage to the device and adjusting the offset and gain registers to achieve the desired output code. The recommended calibration procedure involves a two-point calibration, where the device is calibrated at both the zero-scale and full-scale points.
  • The LTC2328HMS-18#PBF requires a specific power sequencing to ensure correct operation. The recommended power sequencing is to power up the analog supply (AVCC) first, followed by the digital supply (DVCC), and then the clock signal. This ensures that the device powers up in a controlled manner and minimizes the risk of latch-up or other power-related issues.
