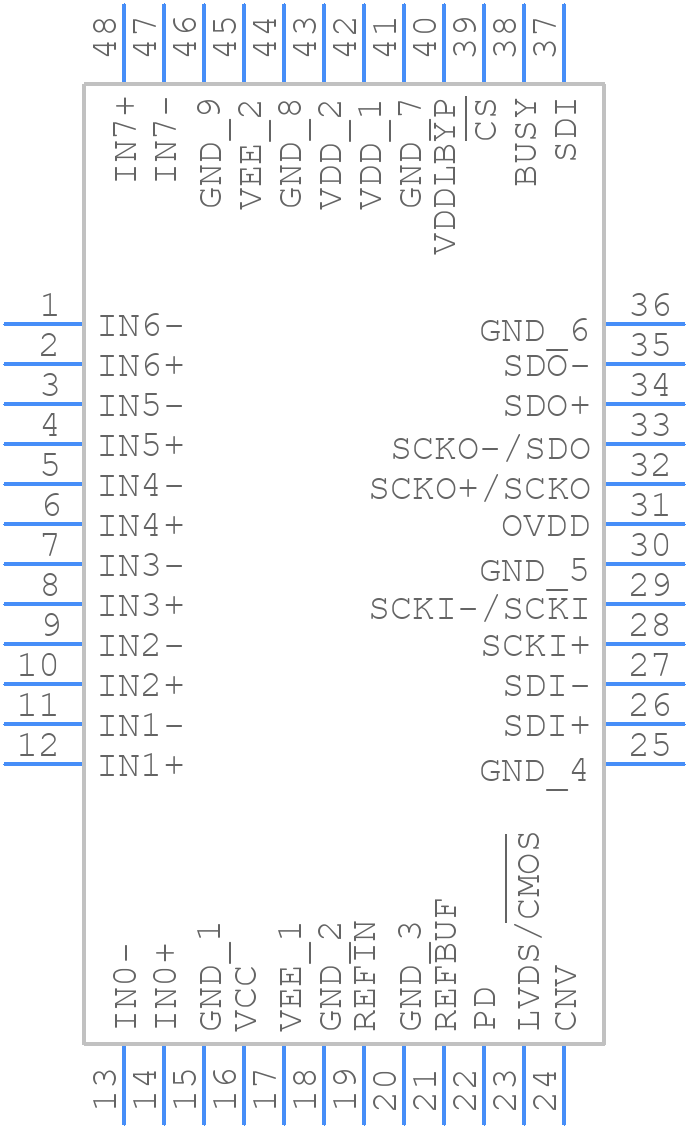

LTC2333ILX-16#PBF - Analog Devices

LTC2333ILX-16#PBF Details

• Manufacturer Part Number:

  LTC2333ILX-16#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LQFP-48

• Pin Count:

  48

• Manufacturer Package Code:

  05-08-1760

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Analog Input Voltage-Max:

  10.2525 V

• Analog Input Voltage-Min:

  -10.2275 V

• Conversion Time-Max:

  0.55 µs

• Converter Type:

  ADC, SUCCESSIVE APPROXIMATION

• JESD-30 Code:

  S-PQFP-G48

• JESD-609 Code:

  e3

• Length:

  7 mm

• Linearity Error-Max (EL):

  0.00458%

• Moisture Sensitivity Level:

  3

• Negative Supply Voltage-Nom:

  -15 V

• Number of Analog In Channels:

  8

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  BINARY, 2S COMPLEMENT BINARY

• Output Format:

  SERIAL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP48,.28SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Sample Rate:

  0.8 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  1.6 mm

• Supply Current-Max:

  11.9 mA

• Supply Voltage-Nom:

  15 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7 mm
