LTC2336HMS-18#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 18-Bit, 250ksps, 10.24V True Bipolar, Fully Differential Input ADC with 100dB SNR

Download LTC2336HMS-18#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

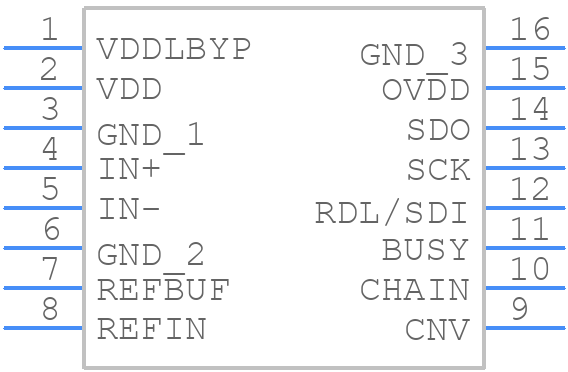

Symbol
LTC2336HMS-18#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2336HMS-18#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - .MS Package 16-Lead Plastic MSOP (Reference LTC DWG # 05-08-1669 Rev A)
click to zoom
3D Models
LTC2336HMS-18#PBF - Analog Devices - 3D model - Small Outline Packages - .MS Package 16-Lead Plastic MSOP (Reference LTC DWG # 05-08-1669 Rev A)
click to zoom

LTC2336HMS-18#PBF Details

  • Manufacturer Part Number:

    LTC2336HMS-18#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    20.505 V

  • Analog Input Voltage-Min:

    -20.455 V

  • Conversion Time-Max:

    3 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.25 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    6.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2336HMS-18#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2336HMS-18#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the ADC and the analog input pins. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin with a 10uF capacitor.
  • To ensure accurate temperature measurement, it's essential to calibrate the device using the CAL pin. The CAL pin allows the user to adjust the offset and gain of the internal temperature sensor. Additionally, the device should be operated within its specified temperature range, and the temperature sensor should be kept away from heat sources and thermal gradients.
  • The maximum sampling rate of the LTC2336HMS-18#PBF is 1.5Msps. To achieve this rate, the user should use the SPI interface with a clock frequency of up to 30MHz, and ensure that the CS pin is held low for the entire conversion cycle. Additionally, the user should use a low-latency clock source and minimize the digital noise on the PCB.
  • The LTC2336HMS-18#PBF outputs 18-bit data in a twos-complement format. The output data can be handled by using a microcontroller or an FPGA to read the data from the SPI interface. The user should take care to handle the output data correctly, taking into account the sign bit and the binary point.
  • The power consumption of the LTC2336HMS-18#PBF is typically around 35mW. To reduce the power consumption, the user can use the power-down mode, which reduces the power consumption to around 1uW. Additionally, the user can reduce the clock frequency, use a lower supply voltage, and minimize the digital activity on the PCB.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2336HMS-18#PBF Overview

Use the download button to access the LTC2336HMS-18#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC23, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
