LTC2355CMSE-12#PBF - Analog Devices

Description: 3.5Msps Conversion Rate n 74.2dB SINAD at 14-Bits, 71.1dB SINAD at 12-Bits n Low Power Dissipation: 18mW n 3.3V Single Supply Operation n 2.5V Internal Bandgap Reference can be Overdriven n 3-Wire SPI-Compatible Serial Interface n Sleep (13µW) Shutdown Mode n Nap (4mW) Shutdown Mode n 80dB Common Mode Rejection n 0V to 2.5V Unipolar Input Range n Tiny 10-Lead MSOP Package

Download LTC2355CMSE-12#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

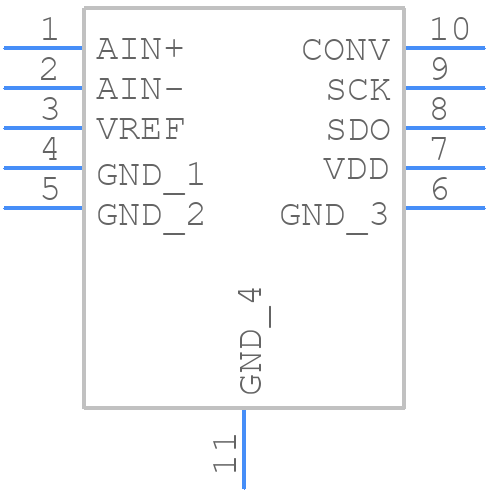

Symbol
LTC2355CMSE-12#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2355CMSE-12#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 10-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1664 Rev I)..
click to zoom
3D Models
LTC2355CMSE-12#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 10-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1664 Rev I)..
click to zoom

LTC2355CMSE-12#PBF Details

  • Manufacturer Part Number:

    LTC2355CMSE-12#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Conversion Time-Max:

    0.285 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    3.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2355CMSE-12#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the LTC2355CMSE-12#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a low-impedance source for the analog input and to decouple the power supply pins with capacitors.
  • The LTC2355CMSE-12#PBF has an internal calibration mechanism, but it's recommended to perform an external calibration to achieve the highest accuracy. This can be done by applying a known input voltage and adjusting the offset and gain registers to match the expected output code.
  • The maximum sampling rate of the LTC2355CMSE-12#PBF is 1.5Msps, but this can be limited by the system's clock frequency, the analog input bandwidth, and the digital interface speed.
  • Yes, the LTC2355CMSE-12#PBF can be used in a multi-channel application by using multiple devices or by using a multiplexer to switch between multiple analog input channels. In the latter case, the multiplexer should be designed to minimize channel-to-channel crosstalk and settling time.
  • The power consumption of the LTC2355CMSE-12#PBF is typically around 20mW, but it can be minimized by reducing the clock frequency, using a lower supply voltage, and putting the device in sleep mode when not in use.
