LTC2358CLX-18#PBF - Analog Devices

Description: Buffered Octal, 18-Bit, 200ksps/Ch Differential ±10.24V ADC with 30VP-P Common Mode Range

Download LTC2358CLX-18#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

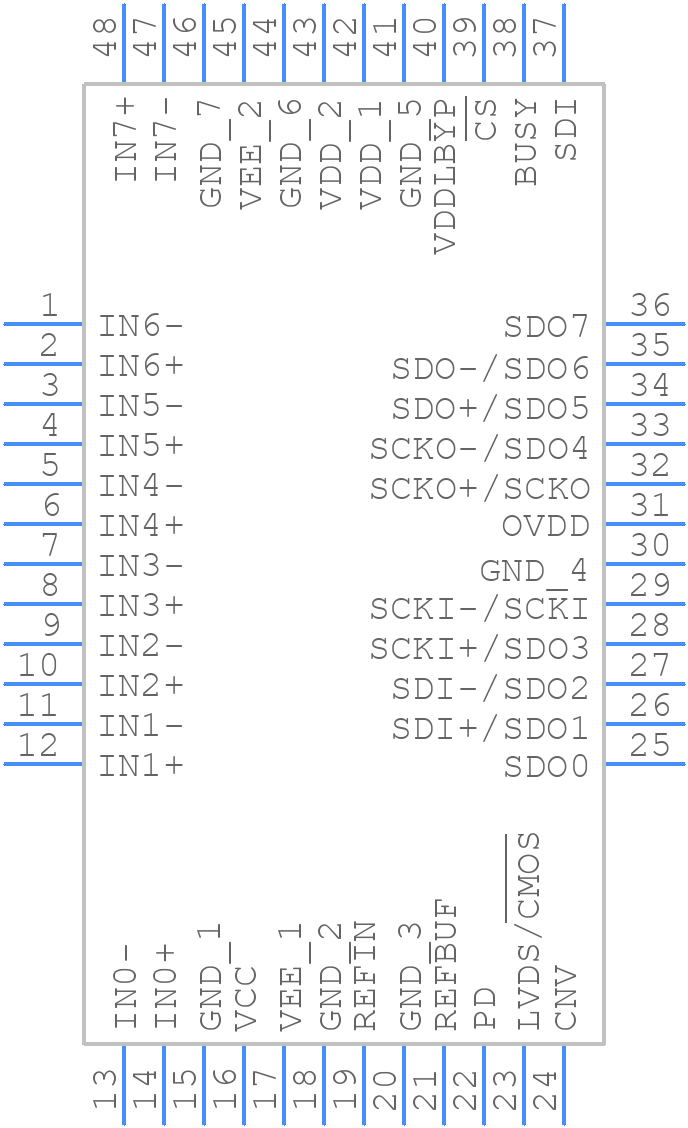

LTC2358CLX-18#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2358CLX-18#PBF - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - LX Package 48-Lead Plastic LQFP (7mm × 7mm)
click to zoom
3D Models
LTC2358CLX-18#PBF - Analog Devices - 3D model - Quad Flat Packages - LX Package 48-Lead Plastic LQFP (7mm × 7mm)
click to zoom

LTC2358CLX-18#PBF Details

  • Manufacturer Part Number:

    LTC2358CLX-18#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    05-08-1760

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    12.5 V

  • Analog Input Voltage-Min:

    -6.25 V

  • Conversion Time-Max:

    4.4 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Analog In Channels:

    8

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.28SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Sample Rate:

    0.2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    18 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

LTC2358CLX-18#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Additionally, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the REF pin. Refer to the application note AN115 for more details.
  • Calibration involves adjusting the offset and gain of the ADC. Use the CAL pin to adjust the offset and the FSC pin to adjust the gain. Refer to the datasheet section on calibration for more details. It's also recommended to use a high-accuracy voltage reference and a stable clock source.
  • The maximum sampling rate of the LTC2358CLX-18#PBF is 1.5Msps. The power consumption increases with the sampling rate, so it's recommended to use the lowest sampling rate necessary for the application to minimize power consumption.
  • The digital output data from the LTC2358CLX-18#PBF is in a 16-bit twos-complement format. The output data is available on the D[15:0] pins. The data is output in a serial format, with the most significant bit (MSB) first. The output data can be read using a microcontroller or an FPGA.
  • The recommended power-up sequence is to power up the VCC pin first, followed by the AVCC pin, and then the digital power pins. This sequence ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper device operation.
