LTC2364IMS-18#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 18-Bit, 250ksps, Pseudo-Differential Unipolar SAR ADC with 97dB SNR

Download LTC2364IMS-18#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

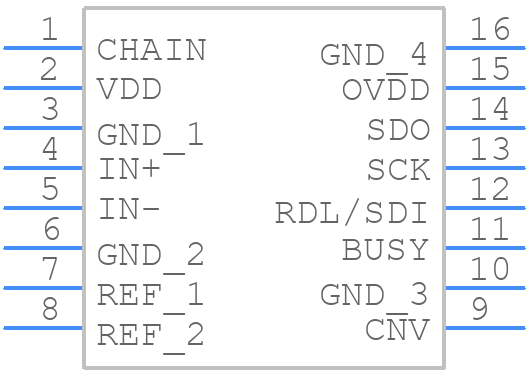

Symbol
LTC2364IMS-18#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2364IMS-18#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 LEAD MSOP+++-+
click to zoom
3D Models
LTC2364IMS-18#PBF - Analog Devices - 3D model - Small Outline Packages - 16 LEAD MSOP+++-+
click to zoom

LTC2364IMS-18#PBF Details

  • Manufacturer Part Number:

    LTC2364IMS-18#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Conversion Time-Max:

    3 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.001%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.25 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.7 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2364IMS-18#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the LTC2364IMS-18#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the ADC close to the analog signal sources and use shielding to reduce electromagnetic interference (EMI).
  • The LTC2364IMS-18#PBF has an internal calibration circuit that can be used to calibrate the ADC. The calibration process involves applying a known input voltage and then using the ADC's internal calibration registers to adjust the gain and offset to achieve the highest accuracy. The calibration process should be performed at the operating temperature range of the device.
  • The maximum sampling rate of the LTC2364IMS-18#PBF is 1.5Msps (megasamples per second). However, the actual sampling rate may be limited by the system's clock frequency, the input signal bandwidth, and the ADC's conversion time.
  • The LTC2364IMS-18#PBF outputs 18-bit digital data in a serial format. The digital output data can be handled using a microcontroller or an FPGA, which can be programmed to read the data and perform further processing, such as data averaging, filtering, or transmission to a host system.
  • The power consumption of the LTC2364IMS-18#PBF is typically around 35mW at a supply voltage of 2.5V. To reduce power consumption, the device can be operated at a lower supply voltage, and the power-down mode can be used to reduce power consumption when the ADC is not in use.
