LTC2365CTS8#TRMPBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2365CTS8#TRMPBF - IC, 12BIT ADC, 1MSPS, SAR, TSOT-8

Download LTC2365CTS8#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

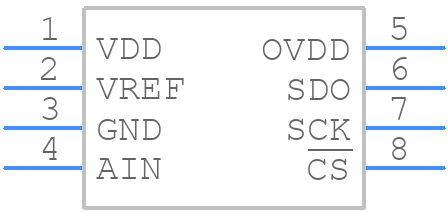

LTC2365CTS8#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2365CTS8#TRMPBF - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - TS8 Package 8-Lead Plastic TSOT-23
click to zoom
3D Models
LTC2365CTS8#TRMPBF - Analog Devices - 3D model - SOT23 (8-Pin) - TS8 Package 8-Lead Plastic TSOT-23
click to zoom

LTC2365CTS8#TRMPBF Details

  • Manufacturer Part Number:

    LTC2365CTS8#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, MO-193, PLASTIC, TSOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1637

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.7 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

LTC2365CTS8#TRMPBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2365 can be found in the application note AN140 'LTC2365 Layout and Routing Guidelines' on the Analog Devices website. It provides guidance on how to minimize noise and ensure optimal performance.
  • The LTC2365 does not require calibration. It is a self-calibrating ADC that uses an internal calibration circuit to ensure accurate conversions. However, it's recommended to follow the recommended power-up and initialization sequence outlined in the datasheet to ensure proper operation.
  • The maximum sampling rate of the LTC2365 is 1.5Msps (Mega Samples Per Second). However, this rate can be affected by the clock frequency, input signal bandwidth, and other system-level factors. It's recommended to consult the datasheet and application notes for more information on achieving the highest sampling rates.
  • Yes, the LTC2365 can be used with an external reference voltage. The device has a REF pin that can be connected to an external reference voltage source. However, it's recommended to ensure that the external reference voltage is stable and within the specified range (2.5V ± 0.5%) to maintain accurate conversions.
  • The LTC2365 has internal overvoltage protection on the input pins, which can withstand up to ±20V without damage. However, it's recommended to use external protection circuitry, such as clamping diodes or resistors, to prevent overvoltage conditions from affecting the device's operation or accuracy.
