LTC2368CMS-24#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 24-Bit, 1Msps, Pseudo- Differential Unipolar SAR ADC with Integrated Digital Filter

Download LTC2368CMS-24#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

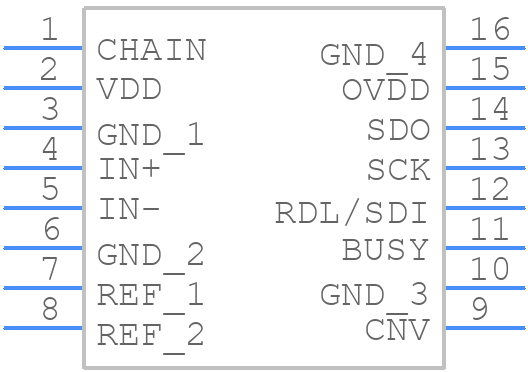

LTC2368CMS-24#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2368CMS-24#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Plastic MSOP
click to zoom
3D Models
LTC2368CMS-24#PBF - Analog Devices - 3D model - Small Outline Packages - 16-Lead Plastic MSOP
click to zoom

LTC2368CMS-24#PBF Details

  • Manufacturer Part Number:

    LTC2368CMS-24#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Conversion Time-Max:

    0.675 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.00045%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2368CMS-24#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signals away from the digital signals. Also, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the REFIN pin.
  • To ensure accuracy, make sure to follow the recommended calibration procedure, use a high-quality reference voltage, and minimize noise and interference in the system. Also, ensure that the input signals are within the specified range and that the ADC is operated within its specified temperature range.
  • The recommended power-up sequence is to first apply the analog supply voltage (AVCC) and then the digital supply voltage (DVCC). This ensures that the analog circuitry is powered up before the digital circuitry.
  • If the ADC is not converting data correctly, check the input signals, reference voltage, and power supplies. Ensure that the input signals are within the specified range and that the reference voltage is stable. Also, check the clock frequency and ensure that it is within the specified range.
  • The maximum clock frequency that can be used with the LTC2368CMS-24#PBF is 4MHz. However, the actual clock frequency used may be limited by the specific application and the required conversion rate.
