LTC2368IDE-24#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 24-Bit, 1Msps, Pseudo- Differential Unipolar SAR ADC with Integrated Digital Filter

Download LTC2368IDE-24#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

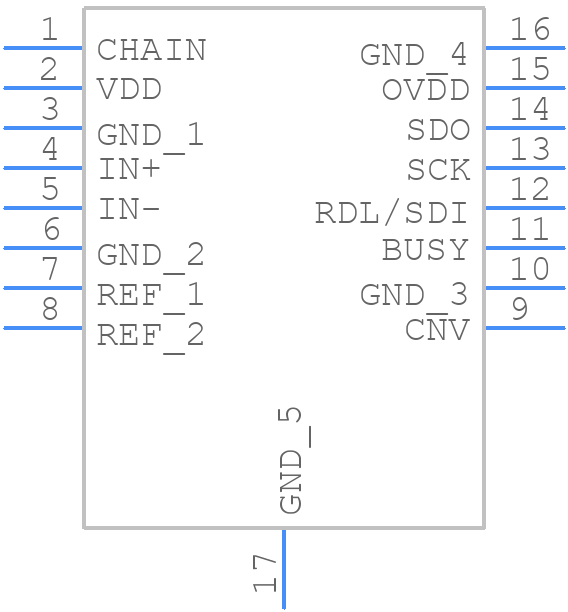

Symbol
LTC2368IDE-24#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2368IDE-24#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LTC2368IDE-24#PBF
click to zoom
3D Models
LTC2368IDE-24#PBF - Analog Devices - 3D model - Small Outline No-lead - LTC2368IDE-24#PBF
click to zoom

LTC2368IDE-24#PBF Details

  • Manufacturer Part Number:

    LTC2368IDE-24#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1732

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Conversion Time-Max:

    0.675 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.00045%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC16,.12,18

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2368IDE-24#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2368IDE-24#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a low-noise power supply and to decouple the power pins with capacitors.
  • The LTC2368IDE-24#PBF does not require calibration, as it is a self-calibrating ADC. However, it's recommended to follow the recommended layout and routing guidelines, and to ensure that the input signals are within the specified range to achieve the highest accuracy.
  • The maximum sampling rate of the LTC2368IDE-24#PBF is 1.5Msps (Mega Samples Per Second). However, the actual sampling rate may be limited by the system's clock frequency, the input signal bandwidth, and the digital interface used.
  • Yes, the LTC2368IDE-24#PBF can be used in a multi-channel application by using multiple devices or by using a multiplexer to switch between multiple input channels. However, the maximum sampling rate may be reduced depending on the number of channels and the system's clock frequency.
  • The power consumption of the LTC2368IDE-24#PBF is typically around 35mW at 1.5Msps. To minimize power consumption, it's recommended to use a low-power mode, reduce the clock frequency, or use a power-down mode when the device is not in use.
