LTC2368IMS-24#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2368IMS-24#PBF - Analogue to Digital Converter, Unipolar SAR, 24 bit, 1 MSPS, Pseudo Differential, SPI, Single

Download LTC2368IMS-24#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

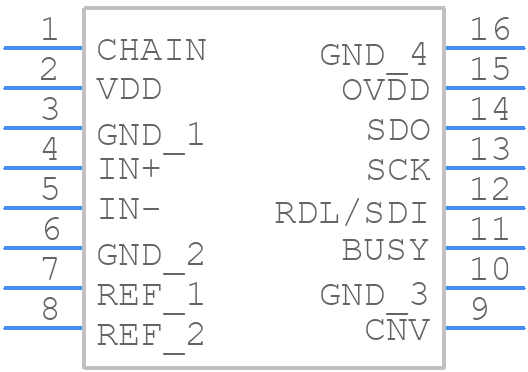

Symbol
LTC2368IMS-24#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2368IMS-24#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 16-Lead Plastic MSOP_2022
click to zoom
3D Models
LTC2368IMS-24#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 16-Lead Plastic MSOP_2022
click to zoom

LTC2368IMS-24#PBF Details

  • Manufacturer Part Number:

    LTC2368IMS-24#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Conversion Time-Max:

    0.675 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.00045%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2368IMS-24#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2368IMS-24#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the clock input traces away from the analog input traces.
  • To optimize the performance of the LTC2368IMS-24#PBF in high-frequency applications, it's recommended to use a low-jitter clock source, minimize the capacitive load on the output pins, and use a high-frequency-compatible layout and routing. Additionally, the use of a low-pass filter on the output pins can help to reduce noise and improve performance.
  • The maximum sampling rate that can be achieved with the LTC2368IMS-24#PBF is 1.5Msps, but this can be limited by the clock frequency, the analog input bandwidth, and the system noise. In practice, the achievable sampling rate may be lower depending on the specific application and system design.
  • The digital output data from the LTC2368IMS-24#PBF can be handled in a microcontroller or FPGA by using a serial peripheral interface (SPI) or a parallel interface. The data can be clocked in using the SCK pin, and the CS pin can be used to select the device. The data can then be processed and stored in the microcontroller or FPGA for further analysis or processing.
  • The power consumption of the LTC2368IMS-24#PBF is typically around 20mW, but this can vary depending on the clock frequency, the sampling rate, and the system design. To minimize power consumption, it's recommended to use a low-power clock source, reduce the sampling rate, and use power-down modes when not in use.
