LTC2377IMS-20#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 20-Bit, 500ksps, 104dB SNR, 0.5pmm INL, 10.5mW, SAR ADC with Serial Interface

Download LTC2377IMS-20#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

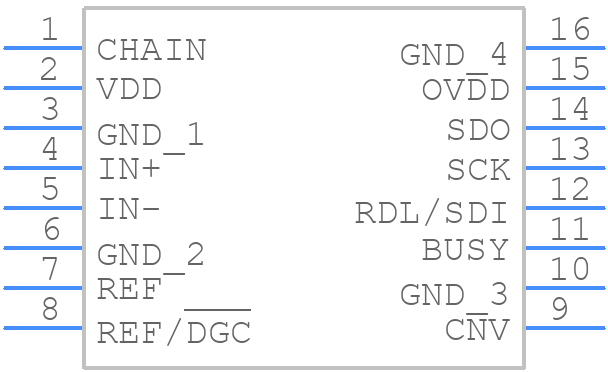

LTC2377IMS-20#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2377IMS-20#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 16-Lead Plastic MSOP
click to zoom
3D Models
LTC2377IMS-20#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 16-Lead Plastic MSOP
click to zoom

LTC2377IMS-20#PBF Details

  • Manufacturer Part Number:

    LTC2377IMS-20#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Conversion Time-Max:

    0.322 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.0009%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2377IMS-20#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2377IMS-20#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a low-noise, low-impedance power supply and to decouple the power pins with capacitors.
  • The LTC2377IMS-20#PBF does not require calibration, as it is a self-calibrating ADC. However, it's recommended to follow the recommended layout and routing guidelines, use a high-quality reference voltage, and ensure that the input signals are within the specified range to achieve the highest accuracy.
  • The maximum sampling rate of the LTC2377IMS-20#PBF is 1.5Msps (Mega Samples Per Second). However, the actual sampling rate may be limited by the system's clock frequency, the input signal bandwidth, and the digital interface used.
  • Yes, the LTC2377IMS-20#PBF can be used in a multi-channel application by using multiple devices or by using a multiplexer to switch between multiple input channels. However, it's recommended to ensure that the input signals are properly multiplexed and that the system's noise and distortion are minimized.
  • The power consumption of the LTC2377IMS-20#PBF is typically around 20mW at 1.5Msps. To minimize power consumption, it's recommended to use a low-power mode, reduce the clock frequency, and use a low-power digital interface such as SPI.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2377IMS-20#PBF Overview

Use the download button to access the LTC2377IMS-20#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC23, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
