LTC2378IMS-16#PBF - Analog Devices

Description: IC ADC 16BIT SPI 1MSPS 16MSOP

Download LTC2378IMS-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

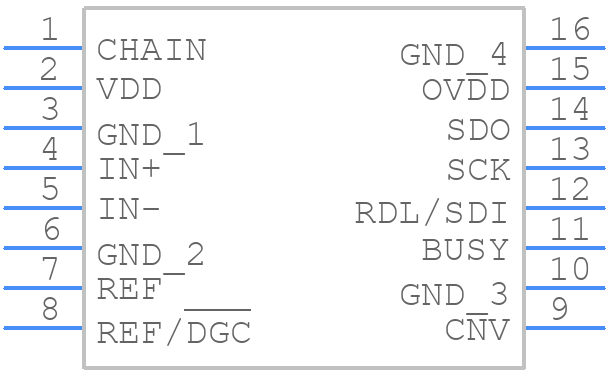

LTC2378IMS-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2378IMS-16#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Plastic MSOP
click to zoom
3D Models
LTC2378IMS-16#PBF - Analog Devices - 3D model - Small Outline Packages - 16-Lead Plastic MSOP
click to zoom

LTC2378IMS-16#PBF Details

  • Manufacturer Part Number:

    LTC2378IMS-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.15 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Conversion Time-Max:

    0.525 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.0008%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    6.3 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2378IMS-16#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2378IMS-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a low-ESR capacitor for the VREF pin and to keep the digital output traces away from the analog input traces.
  • To ensure accuracy over the entire operating temperature range, it's recommended to use a high-accuracy voltage reference, such as the LTC6655, and to calibrate the ADC at multiple temperatures. Additionally, the user should consider the temperature coefficient of the input signal and the voltage reference when designing the system.
  • The maximum sampling rate of the LTC2378IMS-16#PBF is 1.5Msps, and it can be achieved by using the internal clock and setting the SCK pin to its highest frequency. However, increasing the sampling rate will also increase the power consumption, which can be mitigated by using the power-down mode between conversions.
  • The LTC2378IMS-16#PBF can be interfaced with a microcontroller or FPGA using a serial interface, such as SPI or I2C. The recommended communication protocol is SPI, which allows for faster data transfer rates and easier synchronization. The user should ensure that the microcontroller or FPGA can handle the data transfer rate and that the communication protocol is properly implemented.
  • Common sources of error in the LTC2378IMS-16#PBF include noise, thermal drift, and non-linearity. These errors can be mitigated by using a low-noise voltage reference, implementing a high-accuracy analog input filter, and calibrating the ADC at multiple temperatures. Additionally, the user should ensure that the input signal is within the specified range and that the ADC is properly configured.
