LTC2378IMS-16#TRPBF - Analog Devices

Description: Analog to Digital Converters - ADC 16-Bit, 1Msps, 97dB SNR, Low Power SAR ADC with Serial Interface

Download LTC2378IMS-16#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

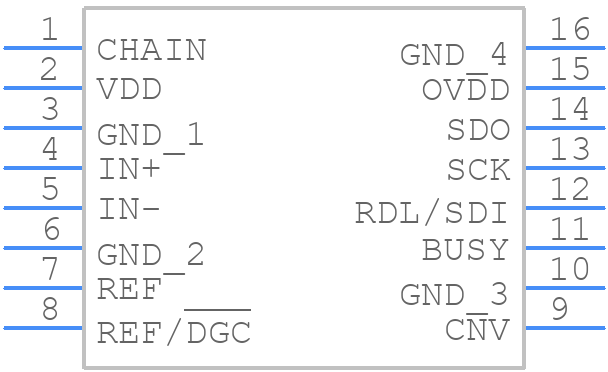

LTC2378IMS-16#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2378IMS-16#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Lead Plastic MSOP
click to zoom
3D Models
LTC2378IMS-16#TRPBF - Analog Devices - 3D model - Small Outline Packages - 16 Lead Plastic MSOP
click to zoom

LTC2378IMS-16#TRPBF Details

  • Manufacturer Part Number:

    LTC2378IMS-16#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.15 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Conversion Time-Max:

    0.525 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.0008%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    6.3 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2378IMS-16#TRPBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2378IMS-16#TRPBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it is recommended to use a low-noise, low-impedance power supply and to decouple the power pins with capacitors.
  • To optimize the performance of the LTC2378IMS-16#TRPBF in high-frequency applications, it is recommended to use a low-jitter clock source, minimize the capacitive load on the output pins, and use a high-frequency capable layout and routing. Additionally, the use of a low-pass filter on the input pins can help to reduce noise and improve performance.
  • The maximum sampling rate that can be achieved with the LTC2378IMS-16#TRPBF is 1.5Msps (megasamples per second) for a single channel, and 750ksps for multiple channels. However, the actual sampling rate may be limited by the system's clock frequency, the input signal bandwidth, and the desired signal-to-noise ratio.
  • The LTC2378IMS-16#TRPBF has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage to the device and then using the calibration registers to adjust the offset and gain of the ADC. The calibration process should be performed at the operating temperature range of the device.
  • The power consumption of the LTC2378IMS-16#TRPBF is typically around 35mW at a sampling rate of 1.5Msps. The power consumption can be minimized by reducing the sampling rate, using the power-down mode, and optimizing the system's power supply. Additionally, the use of a low-power mode can help to reduce the power consumption when the device is not actively converting.
