LTC2380CDE-24#PBF footprint, schematic symbol and 3D model by Analog Devices

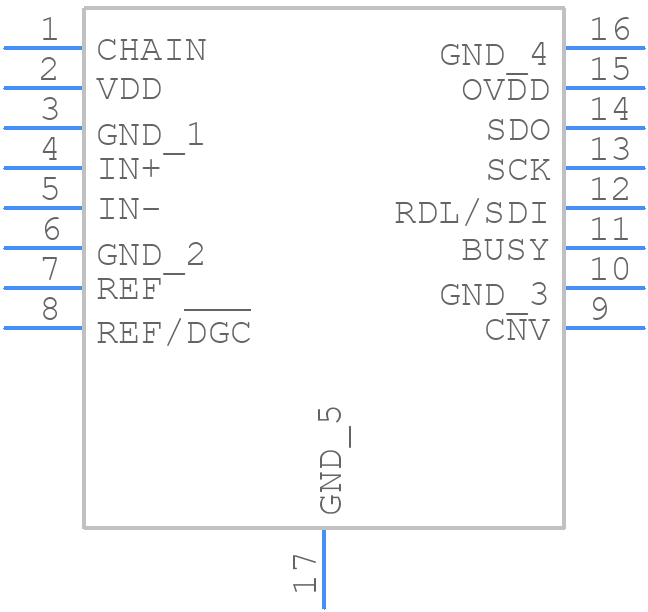

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTC2380CDE-24#PBF
Part Number LTC2380CDE-24#PBF
Manufacturer Analog Devices
Pin Count 17
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - 16-Lead (4mm × 3mm) Plastic DFN
Released Date Mar 12, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LTC2380CDE-24#PBF Details

Manufacturer Part Number:
LTC2380CDE-24#PBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DFN-16
Pin Count:
16
Manufacturer Package Code:
05-08-1732
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Analog Input Voltage-Max:
5.1 V
Analog Input Voltage-Min:
-2.5 V
Conversion Time-Max:
0.392 µs
Converter Type:
ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code:
R-PDSO-N16
JESD-609 Code:
e3
Length:
4 mm
Linearity Error-Max (EL):
3.5%
Moisture Sensitivity Level:
1
Number of Analog In Channels:
1
Number of Bits:
24
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
70 °C
Output Bit Code:
2S COMPLEMENT BINARY
Output Format:
SERIAL
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC16,.12,18
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Sample Rate:
2 MHz
Seated Height-Max:
0.8 mm
Supply Current-Max:
13 mA
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.45 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm

LTC2380CDE-24#PBF Frequently Asked Questions (FAQs)

A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Additionally, use short traces and avoid crossing analog and digital signals.
To optimize performance in a high-frequency application, use a low-ESR capacitor for the VCC pin, minimize the length of the input traces, and use a low-inductance path for the output signals. Additionally, consider using a shielded enclosure to reduce electromagnetic interference.
The recommended power-up sequence is to apply the analog supply voltage (VCC) before the digital supply voltage (DVCC). This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or malfunction.
To troubleshoot issues with the LTC2380CDE-24#PBF, first check the power supply voltages and ensure they are within the recommended range. Then, verify that the input signals are within the specified range and that the clock signal is stable. If the issue persists, check the layout and routing for any potential noise or signal integrity issues.
Yes, the LTC2380CDE-24#PBF can be used in a multi-channel application. To synchronize the channels, use a common clock signal for all channels and ensure that the channels are properly isolated from each other to prevent crosstalk and noise.
