LTC2380CMS-24#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 24-Bit, 1.5Msps/2Msps SAR ADC with Integrated Digital Filter

Download LTC2380CMS-24#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

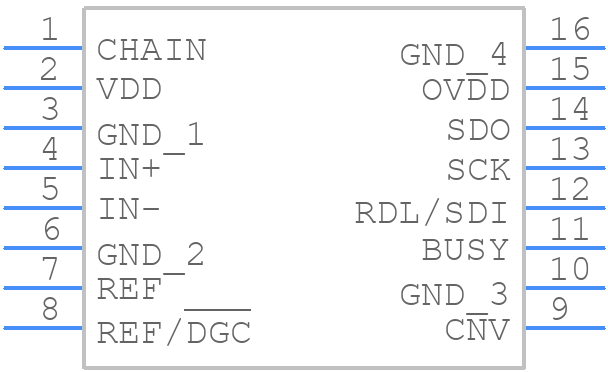

Symbol
LTC2380CMS-24#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2380CMS-24#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LTC MSOP16
click to zoom
3D Models
LTC2380CMS-24#PBF - Analog Devices - 3D model - Small Outline Packages - LTC MSOP16
click to zoom

LTC2380CMS-24#PBF Details

  • Manufacturer Part Number:

    LTC2380CMS-24#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Conversion Time-Max:

    0.392 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    3.5%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    2 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2380CMS-24#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2380CMS-24#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the ADC close to the analog signal sources. Additionally, use short traces and avoid crossing digital and analog signals.
  • To ensure accurate timing and synchronization, use a common clock source for all devices, and use the SYNC pin to synchronize the conversion cycles. Also, consider using a separate clock domain for each device to minimize clock skew.
  • The recommended power-up sequence is to apply the analog supply voltage (AVCC) first, followed by the digital supply voltage (DVCC), and then the clock signal. This ensures that the internal bias circuits are properly initialized.
  • Use external voltage clamping devices, such as diodes or voltage-limiting resistors, to protect the analog input pins from overvoltage conditions. Also, consider using input filters or attenuators to reduce the voltage levels.
  • The maximum allowed capacitance on the VREF pin is 10nF. Exceeding this value can affect the ADC's performance and accuracy.
