LTC2387CUH-16#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2387CUH-16#PBF - ADC, 16BIT, 15MSPS, SERIAL, QFN-32

Download LTC2387CUH-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

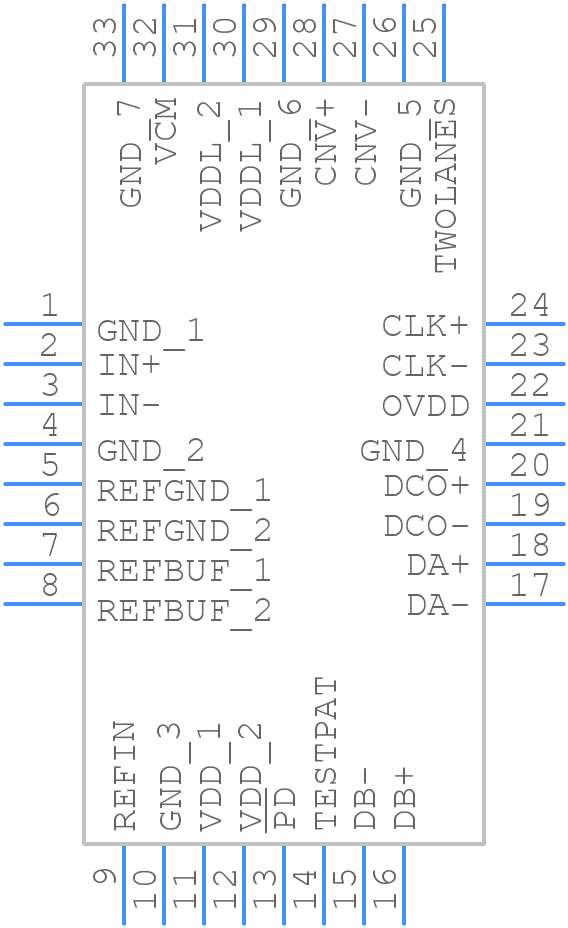

Symbol
LTC2387CUH-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2387CUH-16#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH (32-Lead QFN)
click to zoom
3D Models
LTC2387CUH-16#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UH (32-Lead QFN)
click to zoom

LTC2387CUH-16#PBF Details

  • Manufacturer Part Number:

    LTC2387CUH-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    4.102 V

  • Analog Input Voltage-Min:

    -4.09 V

  • Conversion Time-Max:

    0.063 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0012%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    15 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC2387CUH-16#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2387CUH-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the ADC close to the analog signal sources and to use a low-impedance power supply. A detailed layout and routing guide can be found in the LTC2387CUH-16#PBF evaluation board documentation.
  • The LTC2387CUH-16#PBF does not require calibration, as it is a self-calibrating ADC. However, to achieve the highest accuracy, it's recommended to follow the recommended layout and routing guidelines, use a high-quality reference voltage, and ensure that the analog input signals are properly filtered and buffered.
  • The maximum sampling rate of the LTC2387CUH-16#PBF is 1.5Msps (megasamples per second). However, the actual sampling rate may be limited by the system's clock frequency, the analog input signal bandwidth, and the digital interface used to communicate with the ADC.
  • Yes, the LTC2387CUH-16#PBF can be used in a multi-channel application by using multiple ADCs and multiplexing the analog input signals. However, it's recommended to use a separate ADC for each channel to ensure optimal performance and to minimize crosstalk between channels.
  • The power consumption of the LTC2387CUH-16#PBF is typically around 35mW at a sampling rate of 1.5Msps. The power consumption can be reduced by reducing the sampling rate, using a lower supply voltage, and enabling the ADC's power-down mode when not in use.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2387CUH-16#PBF Overview

Use the download button to access the LTC2387CUH-16#PBF schematic symbol, PCB footprint, and 3D model.
