LTC2402IMS#PBF - Analog Devices

Description: Linear Technology LTC2402IMS#PBF, 24 bit Serial ADC, Dual Differential Input, 10-Pin MSOP

Download LTC2402IMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

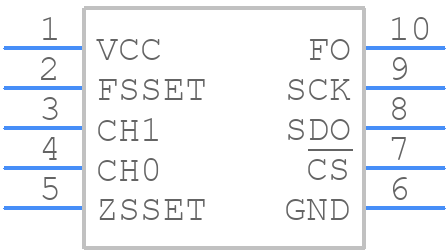

Symbol
LTC2402IMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2402IMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS10(MSOP)_1
click to zoom
3D Models
LTC2402IMS#PBF - Analog Devices - 3D model - Small Outline Packages - MS10(MSOP)_1
click to zoom

LTC2402IMS#PBF Details

  • Manufacturer Part Number:

    LTC2402IMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.512 V

  • Analog Input Voltage-Min:

    -0.012 V

  • Conversion Time-Max:

    163440 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0083%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2402IMS#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2402IMS#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure accuracy and stability, it's essential to follow proper PCB design and layout guidelines, use a high-quality voltage reference, and implement a calibration procedure. Additionally, consider using a temperature sensor to monitor the device's temperature and compensate for any temperature-related drift.
  • When selecting external components, consider the voltage reference's accuracy, temperature coefficient, and noise performance. For capacitors, choose low-ESR, high-frequency capacitors with a high ripple current rating. Ensure the capacitors are placed close to the device and connected to the correct pins.
  • To troubleshoot issues, start by verifying the power supply and voltage reference connections. Check for noise sources, such as switching regulators or high-frequency signals, and ensure proper grounding and shielding. Use an oscilloscope to analyze the device's output and input signals, and consult the datasheet and application notes for guidance.
  • When using the LTC2402IMS#PBF in a system with multiple power domains or voltage rails, ensure that the device's power supply is properly isolated and decoupled from other power domains. Use level shifters or voltage translators as needed, and consider using a separate power plane for the device to minimize noise and interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2402IMS#PBF Overview

Use the download button to access the LTC2402IMS#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC24, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
