LTC2410CGN#PBF - Analog Devices

Description: LTC2410CGN#PBF, 24 bit ADC Differential, Serial, 16-Pin SSOP N

Download LTC2410CGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

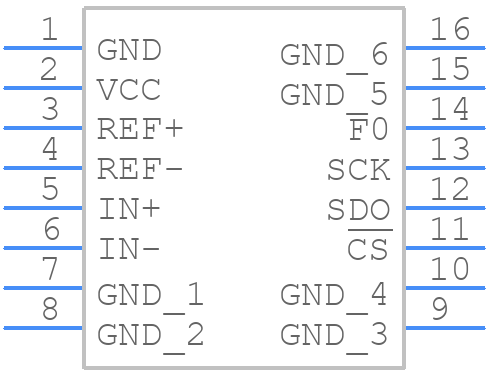

Symbol
LTC2410CGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2410CGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN(DFN)_1
click to zoom
3D Models
LTC2410CGN#PBF - Analog Devices - 3D model - Small Outline Packages - GN(DFN)_1
click to zoom

LTC2410CGN#PBF Details

  • Manufacturer Part Number:

    LTC2410CGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    1.65 V

  • Analog Input Voltage-Min:

    -1.65 V

  • Conversion Time-Max:

    163440 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.00025%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9116 mm

LTC2410CGN#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2410CGN involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To optimize the performance of the LTC2410CGN in noisy environments, use a low-pass filter at the input, add a shield around the device, and use a low-noise power supply. Additionally, consider using a common-mode filter or a ferrite bead to reduce electromagnetic interference (EMI).
  • The maximum sampling rate of the LTC2410CGN is 1.5Msps (megasamples per second). However, the actual sampling rate may be limited by the system's clock frequency, filter settling time, and other factors.
  • Calibration of the LTC2410CGN involves adjusting the internal offset and gain to minimize errors. This can be done using the device's built-in calibration modes and adjusting the internal registers. Refer to the datasheet and application notes for specific calibration procedures.
  • The power consumption of the LTC2410CGN depends on the operating mode and clock frequency. In normal operation, the device consumes around 35mW at 3.3V supply voltage. In shutdown mode, the power consumption is typically less than 1μW.
