LTC2428CG#PBF - Analog Devices

Description: LTC2428CG#PBF, 20 bit ADC Serial, 28-Pin SSOP

Download LTC2428CG#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

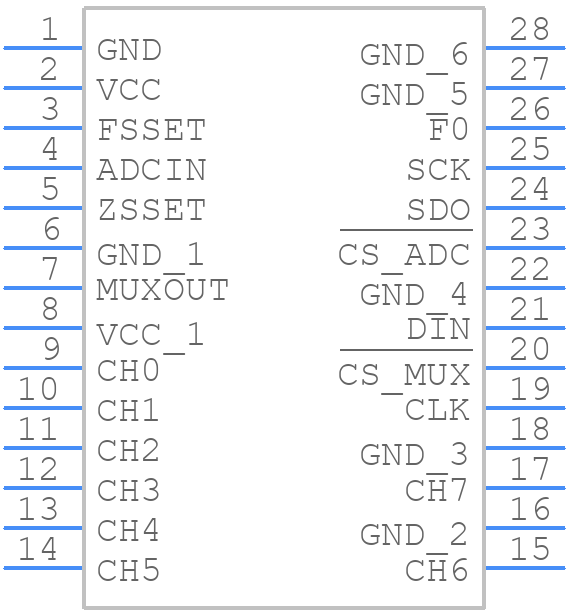

Symbol
LTC2428CG#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2428CG#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - G(SSOP)
click to zoom
3D Models
LTC2428CG#PBF - Analog Devices - 3D model - Small Outline Packages - G(SSOP)
click to zoom

LTC2428CG#PBF Details

  • Manufacturer Part Number:

    LTC2428CG#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.209 INCH, PLASTIC, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1640 (G28)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    3.7125 V

  • Analog Input Voltage-Min:

    -0.4125 V

  • Conversion Time-Max:

    163440 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.002%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    20

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

LTC2428CG#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2428CG#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure accurate and reliable conversion results with the LTC2428CG#PBF, it's essential to follow proper PCB layout and design guidelines, use a high-quality analog power supply, and ensure that the device is operated within its specified temperature range. Additionally, it's recommended to use a low-noise, low-impedance analog signal source and to filter out any high-frequency noise.
  • When selecting an external clock source for the LTC2428CG#PBF, key considerations include the clock frequency, clock jitter, and clock amplitude. The clock frequency should be within the specified range, and the clock jitter should be minimized to ensure accurate conversion results. Additionally, the clock amplitude should be within the specified range to ensure proper device operation.
  • To troubleshoot common issues with the LTC2428CG#PBF, start by verifying the device's power supply and clock source. Check for proper device configuration, and ensure that the device is operated within its specified temperature range. Use a logic analyzer or oscilloscope to verify the device's digital outputs and analog inputs. If issues persist, consult the datasheet and application notes for troubleshooting guidelines.
  • The LTC2428CG#PBF is a high-performance, low-power ADC with a unique combination of features, including a high-speed SPI interface, low noise, and high accuracy. Compared to other similar ADCs from Analog Devices Inc, the LTC2428CG#PBF offers a higher sampling rate, lower power consumption, and a more comprehensive feature set.
