LTC2433-1CMS#PBF - Analog Devices

Description: ADC,LTC2433 16bit diff D-S SPI MSOP LTC2433-1CMS#PBF, 16 bit ADC Differential, Serial, 10-Pin MSOP

Download LTC2433-1CMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

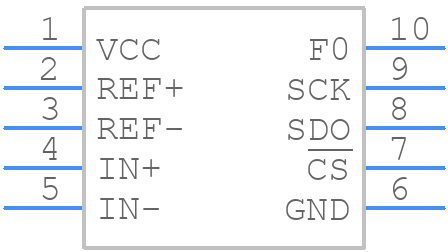

Symbol
LTC2433-1CMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2433-1CMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS10(MSOP)_3
click to zoom
3D Models
LTC2433-1CMS#PBF - Analog Devices - 3D model - Small Outline Packages - MS10(MSOP)_3
click to zoom

LTC2433-1CMS#PBF Details

  • Manufacturer Part Number:

    LTC2433-1CMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    5.8 V

  • Analog Input Voltage-Min:

    -0.3 V

  • Conversion Time-Max:

    149600 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0019%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2433-1CMS#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2433-1CMS#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure accurate temperature measurement with the LTC2433-1CMS#PBF, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be placed close to the temperature sensor, and the PCB should be designed to minimize thermal noise.
  • The maximum allowed voltage on the analog input pins of the LTC2433-1CMS#PBF is the supply voltage (VCC) + 0.3V. Exceeding this voltage can cause damage to the device.
  • Yes, the LTC2433-1CMS#PBF can be used in a ratiometric configuration, where the reference voltage is derived from the power supply voltage. This configuration can provide better noise rejection and improved accuracy.
  • The digital output data from the LTC2433-1CMS#PBF is in a 24-bit twos-complement format. The data should be handled as a signed integer, and the most significant bit (MSB) indicates the sign of the data. The data can be processed using a microcontroller or a digital signal processor.
