LTC2436-1IGN#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 2-Ch Diff In 16-B No Lat DS ADC

Download LTC2436-1IGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

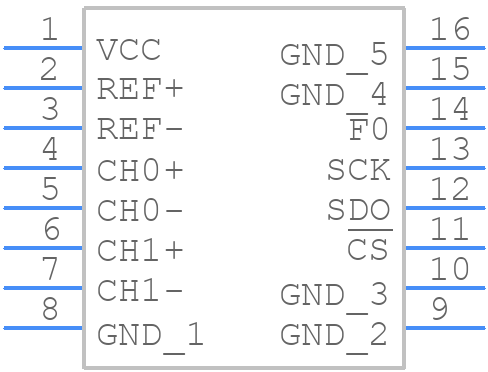

Symbol
LTC2436-1IGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2436-1IGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LTC2436-1IGN#PBF
click to zoom
3D Models
LTC2436-1IGN#PBF - Analog Devices - 3D model - Small Outline Packages - LTC2436-1IGN#PBF
click to zoom

LTC2436-1IGN#PBF Details

  • Manufacturer Part Number:

    LTC2436-1IGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Conversion Time-Max:

    149600 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.8895 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.727 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC2436-1IGN#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2436-1IGN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure accurate temperature measurement with the LTC2436-1IGN#PBF, it's essential to calibrate the device using a thermocouple simulator or a precision temperature source. Additionally, the device should be placed in a thermally stable environment, and the thermocouple should be properly connected and insulated.
  • The maximum cable length for the thermocouple connection to the LTC2436-1IGN#PBF depends on the type of thermocouple and the noise environment. As a general rule, the cable length should be kept as short as possible (less than 10 feet) to minimize noise pickup and ensure accurate measurements.
  • The LTC2436-1IGN#PBF is designed to work with standard thermocouple types such as J, K, T, E, N, and R. However, it's possible to use the device with non-standard thermocouple types by using an external thermocouple amplifier and adjusting the gain and offset settings accordingly.
  • To troubleshoot common issues with the LTC2436-1IGN#PBF, start by checking the power supply voltage, thermocouple connection, and device configuration. Verify that the device is properly configured and calibrated, and check for any signs of physical damage or overheating. If the issue persists, consult the datasheet and application notes or contact Analog Devices Inc. support for further assistance.
