LTC2440IGN#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 24-Bit Diff Input High Speed Delta Sigma ADC

Download LTC2440IGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

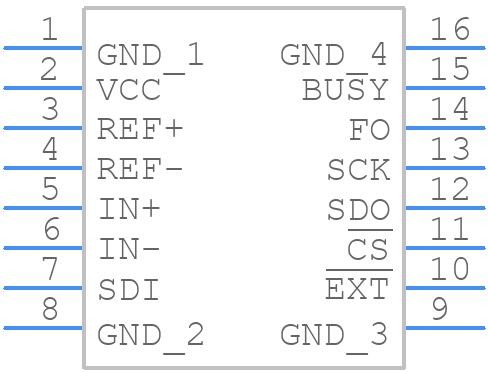

Symbol
LTC2440IGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2440IGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LTC2440IGN#PBF
click to zoom
3D Models
LTC2440IGN#PBF - Analog Devices - 3D model - Small Outline Packages - LTC2440IGN#PBF
click to zoom

LTC2440IGN#PBF Details

  • Manufacturer Part Number:

    LTC2440IGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVSON-6

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    42000 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Linearity Error-Max (EL):

    0.0153%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LTC2440IGN#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2440IGN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and to keep the digital signals away from the analog signals.
  • To ensure accuracy and stability, it's essential to follow proper PCB design and layout guidelines, use a high-quality voltage reference, and implement a calibration procedure. Additionally, consider using a temperature sensor to compensate for temperature-related errors and ensure that the device is operated within its specified temperature range.
  • When selecting an external clock source for the LTC2440IGN#PBF, consider the clock frequency, jitter, and phase noise. A low-jitter clock source with a frequency of 10MHz to 40MHz is recommended. Additionally, ensure that the clock source is synchronized with the ADC's sampling clock to minimize jitter and ensure optimal performance.
  • To optimize the power supply and decoupling, use a low-noise, low-dropout regulator (LDO) with a high power supply rejection ratio (PSRR). Add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins, and consider adding a ferrite bead or a pi-filter to further reduce noise.
  • When selecting an analog input filter for the LTC2440IGN#PBF, consider the filter's cutoff frequency, attenuation, and phase response. A low-pass filter with a cutoff frequency above the Nyquist frequency (half the sampling rate) is recommended. Additionally, ensure that the filter's output impedance is matched to the ADC's input impedance to minimize signal attenuation and distortion.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2440IGN#PBF Overview

Use the download button to access the LTC2440IGN#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC24, or try a keyword search, such as Analog to Digital Converters
