The recommended layout and placement for the LTC2447CUHF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To optimize the performance of the LTC2447CUHF in noisy environments, use shielding, filtering, and grounding techniques to minimize electromagnetic interference (EMI). Additionally, use a low-pass filter on the input signals, and consider using a differential input configuration to reject common-mode noise.
The maximum sampling rate of the LTC2447CUHF is 1.5Msps, but this can be limited by the system's analog bandwidth, the quality of the input signals, and the noise floor of the system. In practice, a sampling rate of up to 1Msps is typically achievable with a well-designed system.
The LTC2447CUHF has an internal calibration mechanism that can be used to optimize its performance. The device can be calibrated using an external calibration signal, and the calibration data can be stored in an external EEPROM. Refer to the datasheet and application notes for more information on the calibration procedure.
The power consumption of the LTC2447CUHF is typically around 35mW, but this can be minimized by using the device's power-down mode, reducing the clock frequency, and optimizing the system's power supply design. Additionally, using a low-power mode for the device's internal reference can also help reduce power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTC2447CUHF#TRPBF Overview

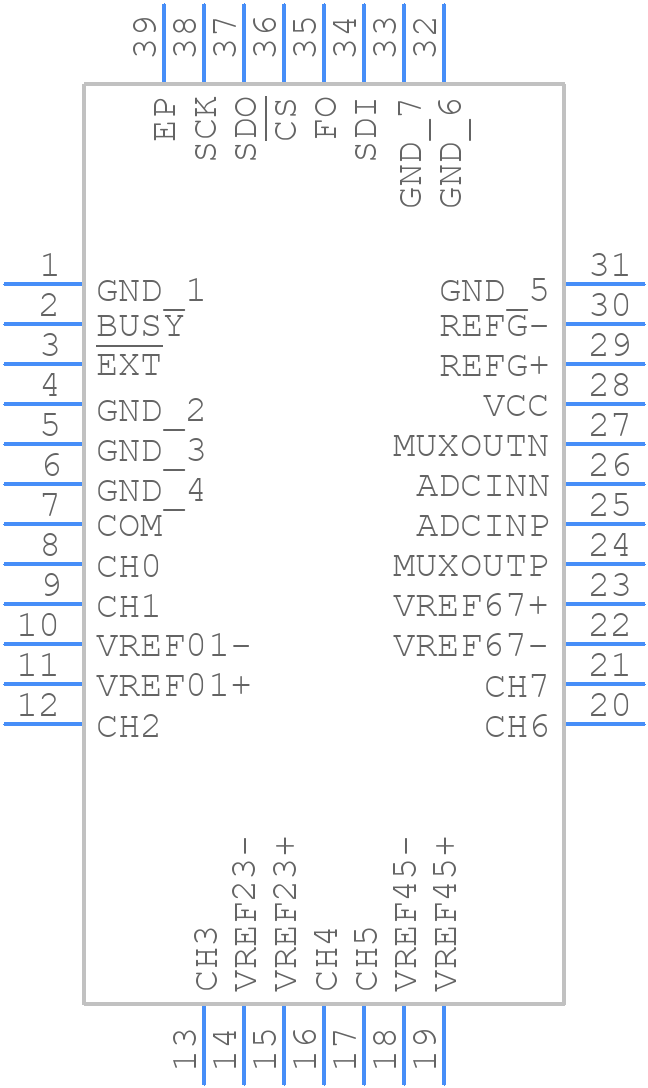

Use the download button to access the LTC2447CUHF#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC24,
or try a keyword search, such as Analog to Digital Converters
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
