LTC2450CDC#TRMPBF - Analog Devices

Description: Analog to Digital Converters - ADC 16-bit 30Hz Delta Sigma ADC in 2x2 DFN

Download LTC2450CDC#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

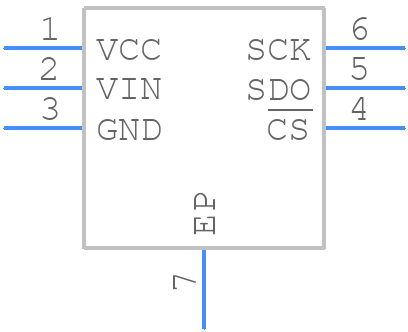

Symbol
LTC2450CDC#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2450CDC#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DC Package 6-Lead Plastic DFN (2mm × 2mm)+
click to zoom
3D Models
LTC2450CDC#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - DC Package 6-Lead Plastic DFN (2mm × 2mm)+
click to zoom

LTC2450CDC#TRMPBF Details

  • Manufacturer Part Number:

    LTC2450CDC#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVSON-12

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1703

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.25 V

  • Conversion Time-Max:

    23000 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-XDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2450CDC#TRMPBF Frequently Asked Questions (FAQs)

  • A good layout and routing for the LTC2450CDC involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To optimize the performance of the LTC2450CDC in noisy environments, use a low-pass filter at the input, add a ferrite bead or a common-mode choke to the power supply lines, and use a shielded enclosure to reduce electromagnetic interference (EMI).
  • The maximum clock frequency that can be used with the LTC2450CDC is 4MHz. However, the actual clock frequency may be limited by the specific application and the noise environment.
  • To ensure accurate conversions with the LTC2450CDC, use a high-quality voltage reference, ensure a stable power supply, and minimize noise and interference in the analog input signal. Also, calibrate the device regularly to compensate for any drift or offset.
  • Yes, the LTC2450CDC can be used in a multi-channel application. However, each channel requires a separate device, and the devices must be synchronized to ensure simultaneous sampling. A separate voltage reference is also required for each device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2450CDC#TRMPBF Overview

Use the download button to access the LTC2450CDC#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC24, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
